【病毒分析】2024年网鼎杯朱雀组REVERSE02——关于勒索木马解密详解

1.背景 1.1 网鼎杯比赛介绍为深入贯彻落实习近平总书记关于网络强国的重要思想，全面践行总体国家安全观，充分调动社会力量积极性，挖掘和选拔网络安全实战化人才，进一步筑牢网络安全防线，在...

**1.背景**
========

1.1 网鼎杯比赛介绍
-----------

为深入贯彻落实习近平总书记关于网络强国的重要思想，全面践行总体国家安全观，充分调动社会力量积极性，挖掘和选拔网络安全实战化人才，进一步筑牢网络安全防线，在前三届“网鼎杯”网络安全大赛基础上，第四届“网鼎杯”网络安全大赛以“网数融合，鼎筑未来”为主题，打造最大规模、最新技术、最高水平的“网络安全奥运会”。

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-c7a5617696341200c90aa1bd815a9658466d1720.png)

网站链接：<https://www.wangdingcup.com/>\#/

1.2 朱雀组介绍
---------

（能源、电力、化工、国防及其他行业单位）

1.3 题目介绍 RE02
-------------

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-b519a9cb8416d14f975253b4dede2d995e36e3d0.jpeg)

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-fb98181e74310334e8d91b79f6845f1f823adbcc.png)

2.恶意文件基础信息
==========

2.1 加密器基本信息
-----------

|  |  |
|---|---|
| 文件名: | ReMe.exe |
| 编译器: | Microsoft Visual C/C++(16.00.30319)\[LTCG/C++\] |
| 大小: | 499.00KB |
| 操作系统: | Windows(XP)\[I386, 32位, Console\] |
| 架构: | 386 |
| 模式: | 32 位 |
| 类型: | EXEC |
| 字节序: | LE |
| MD5: | 4fd22bc6938254c2ba65fcc38f23d603 |
| SHA1: | b388453c3a4aa0d3142ecebf4eb9637e6b9d559c |
| SHA256: | c2964f90a0d4ef70e0092aed526c482d9ab157ee3f59a40955f3e1087fbeee07 |

3.加密后文件分析
=========

3.2 加密的测试文件
-----------

### 3.2.1文件名

flag.txt

### 3.2.2具体内容

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-f1d8e7b2a369231a3dbcd3c7f6d3e308adc83038.png)

### 3.2.3加密文件名特征

加密文件名 = 原始文件名+.cry ，例如：flag.txt.cry

### 3.2.4加密算法

文件加密使用了AES-ECB加密算法。

#### 3.2.4.1AES密钥生成

key内置于文件中

### 3.2.5程序执行流程

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-8dd2e1747da870515a65c30ac6252da3c061bfcf.png)

4逆向分析
=====

4.1加密器逆向分析
----------

拖入die，发现是一个vmp保护的程序

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-daa1b9006772cf8dac3eda66d4c9532a3e5faa88.png)

### 4.1.1 简单脱壳

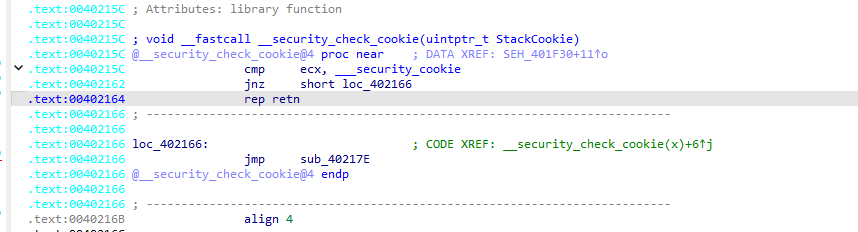

拖入ida中，发现了一个跟堆栈保护相关的函数，通过他我们可以跟踪到入口点

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-50efb2b5eecc7523c27c99b4bc874bfa7948b640.png)

通过交叉引用最后能找到，猜测此处为入口点

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-d1143c0cdde45e8bd314a6324158c13b6ba0e6fe.png)

此处为跳转的入口点的地方

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-33aa8fefa0e5ee8b3df4e6426fb8ce800853f8b5.png)

拖入xdbg，并在此处下硬件断点

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-d09c9f116985c67d6c58d91def70c2ff08a275f9.png)

断住之后使用sycall插件修复iat并转储文件

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-57677333970b23728ed9c379f21b1b5a9d1e18ef.png)

将其拖入ida中，最后出现了三个函数

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-b1fccba1946ca96d267abafa5f19dc82fd709fc4.png)

### 4.1.2 进程注入初次加密

第一个函数如下，首先自解密出字符串

```C
  memset(Buffer, 0, sizeof(Buffer));
  for ( i = 0; i < strlen(LibFileName); ++i )
    LibFileName[i] ^= 1u;
  LibraryA = LoadLibraryA(LibFileName);
  for ( j = 0; j < strlen(aBsdUdghmd); ++j )
    aBsdUdghmd[j] ^= 1u;
  Buffer[0] = (int)GetProcAddress(LibraryA, aBsdUdghmd);
  for ( k = 0; k < strlen(aSdEghmd); ++k )
    aSdEghmd[k] ^= 1u;
  Buffer[1] = (int)GetProcAddress(LibraryA, aSdEghmd);
  for ( m = 0; m < strlen(aVshudghmd); ++m )
    aVshudghmd[m] ^= 1u;
  Buffer[2] = (int)GetProcAddress(LibraryA, aVshudghmd);
  for ( n = 0; n < strlen(aBmnrdiOemd); ++n )
    aBmnrdiOemd[n] ^= 1u;
  Buffer[3] = (int)GetProcAddress(LibraryA, aBmnrdiOemd);
  for ( ii = 0; ii < strlen(aEdmdudghmd); ++ii )
    aEdmdudghmd[ii] ^= 1u;
  Buffer[4] = (int)GetProcAddress(LibraryA, aEdmdudghmd);
  for ( jj = 0; jj < strlen(String2); ++jj )
    String2[jj] ^= 1u;
  lstrcpyA((LPSTR)&Buffer[5], String2);
  memset(pszPath, 0, sizeof(pszPath));
```

得到如下字符串

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-cd24c2cdfa263f576db743d852679cb48182adea.png)

检测当前进程是否运行在wow模式，并尝试获取系统文件夹路径

```C
  Wow64Process = 0;
  CurrentProcess = GetCurrentProcess();
  IsWow64Process(CurrentProcess, &Wow64Process);
  SHGetFolderPathA(0, 4 * Wow64Process + 37, 0, 0, pszPath);
```

得到如下字符串

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-c2a55af3c2bd153170c020bb3c572fcbd84d5195.png)

自解密后拼接生成字符串C:\\\\Windows\\\\SysWOW64\\\\svchost.exe

```C
 for ( kk = 0; kk < strlen(aRwbinruDyd); ++kk )
    aRwbinruDyd[kk] ^= 1u;
  lstrcatA(pszPath, aRwbinruDyd);
```

创建进程svchost.exe并进行注入

```C
 if ( CreateProcessA(0, pszPath, 0, 0, 0, 4u, 0, 0, v11, v13) )
  {
    v14 = (char *)VirtualAllocEx(v13->hProcess, 0, 0x2000u, 0x3000u, 0x40u);
    if ( v14
      && (!WriteProcessMemory(v13->hProcess, v14, Buffer, 0x34u, &NumberOfBytesWritten)
       || !WriteProcessMemory(
             v13->hProcess,
             v14 + 52,
             sub_6E14E0,
             (char *)sub_6E15F0 - (char *)sub_6E14E0,
             &NumberOfBytesWritten)) )
    {
      GetLastError();
      return VirtualFree(v14, 0x2000u, 0x4000u);
    }
  }
  else
  {
    v14 = (char *)NumberOfBytesWritten;
  }
  RemoteThread = CreateRemoteThread(v13->hProcess, 0, 0, (LPTHREAD_START_ROUTINE)(v14 + 52), v14, 0, 0);
  return WaitForSingleObject(RemoteThread, 0xFFFFFFFF);
}
```

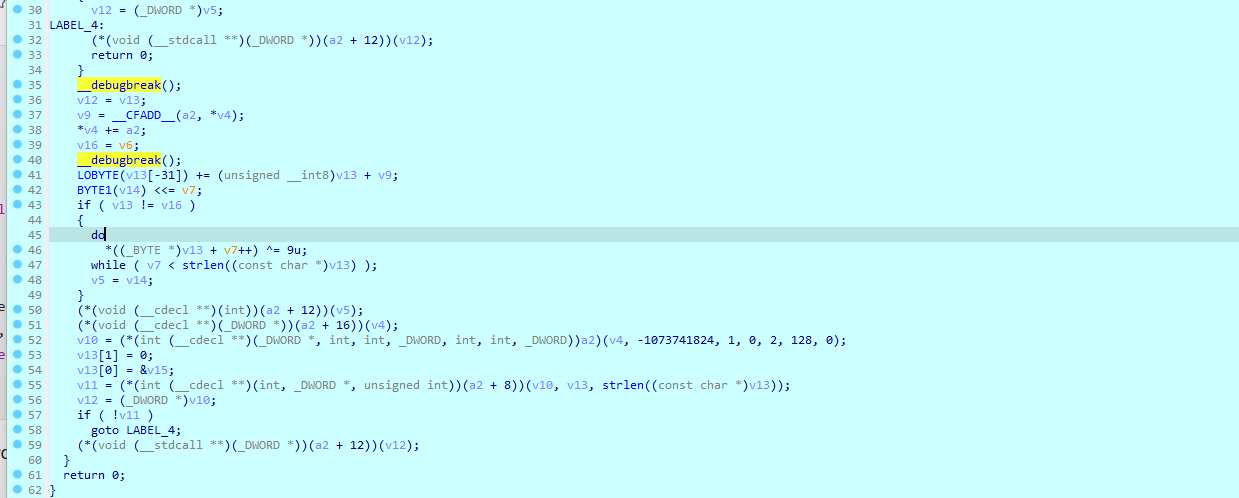

对v13-&gt;hProcess 指向的进程进行附加，并跳转到WriteProcessMemory注入内存的位置

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-f50eb2666efb35e4cf269cc6dd91f9bddb5874e8.png)

得到一个字符串

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-9a52a9a2b835449502e438db33dc43d3160fb322.png)

对文件进行读取，同时对文件内容进行异或0x9

```C
int __stdcall sub_B30034(int a1)
{
  int (__stdcall *CreateFileA)(int, int, int, _DWORD, int, int, _DWORD); // eax
  int v2; // ebx
  int v3; // edi
  unsigned int v5; // ecx
  int v6; // edi
  int v7; // eax
  int v8; // [esp-4h] [ebp-3Ch]
  char v9[36]; // [esp+Ch] [ebp-2Ch] BYREF
  int v10; // [esp+30h] [ebp-8h]
  int v11; // [esp+34h] [ebp-4h] BYREF

memset(v9, 0, sizeof(v9));
  CreateFileA = *(int (__stdcall **)(int, int, int, _DWORD, int, int, _DWORD))a1;
  v2 = a1 + 20;
  v11 = 0;
  v3 = CreateFileA(a1 + 20, -1073741824, 1, 0, 3, 128, 0);
  v10 = v3;
  if ( v3 != -1 )
  {
    if ( !(*(int (__stdcall **)(int, char *, int, int *, _DWORD))(a1 + 4))(v3, v9, 32, &v11, 0) )
    {
      v8 = v3;
LABEL_4:
      (*(void (__stdcall **)(int))(a1 + 12))(v8);
      return 0;
    }
    v5 = 0;
    if ( &v9[strlen(v9) + 1] != &v9[1] )
    {
      do
        v9[v5++] ^= 9u;
      while ( v5 < strlen(v9) );
      v3 = v10;
    }
    (*(void (__stdcall **)(int))(a1 + 12))(v3);
    (*(void (__stdcall **)(int))(a1 + 16))(v2);
    v6 = (*(int (__stdcall **)(int, int, int, _DWORD, int, int, _DWORD))a1)(v2, -1073741824, 1, 0, 2, 128, 0);
    v7 = (*(int (__stdcall **)(int, char *, unsigned int, int *, _DWORD))(a1 + 8))(v6, v9, strlen(v9), &v11, 0);
    v8 = v6;
    if ( !v7 )
      goto LABEL_4;
    (*(void (__stdcall **)(int))(a1 + 12))(v6);
  }
  return 0;
}
```

### 4.1.3 释放pe文件

由于转储没修复好，因此无法读取到资源

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-3aebb50c97a1c102152e02f3ac347e05f22e943e.png)

因此将Reme.exe拖入xdbg中分析，对sizeofresource下硬件执行断点

读取资源

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-282d3bf00af1d378b9bbe359cae2569f7565a3eb.png)

该资源大小为b800

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-14c995eb1cbdeae11ce8f1892895e573887b8491.png)

对提取出的资源进行异或解密

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-730f56e853905891088ed6cbab7da274eab87992.png)

解密出一个pe文件

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-564f144876e6e9a83281de5d1f054e08f6bc9582.png)

创建进程，其中ebx所在的地址的第三个值即使进程的pid

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-97622f611bcf38c3c855713547c8b5bfd2c40581.png)

分配内存

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-efa51068bf69cfda3bce112a8f170473104a02aa.png)

循环写入内存，修复释放的pe文件

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-bf3fba78afd62ebc9adeee35ef41b7d153d98516.png)

使用xdbg附加到创建的进程，并转储刚刚注入的文件

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-20e1cda451c0474964246cebc25a6acb0da4969f.png)

拖入die

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-f57e19eecce88498b5163e40581c053df598e46b.png)

### 4.1.4 二次加密

拖入ida中，发现了一个有趣的东西

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-4a7785d95dccd5cfe6073ceec0182300b2b9a651.png)

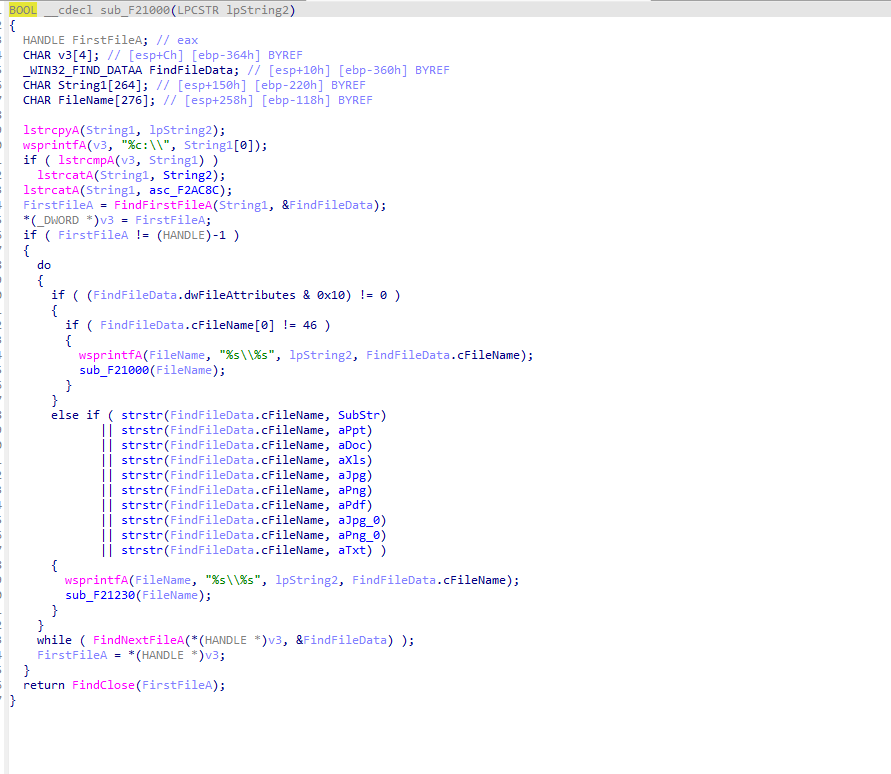

主函数为，其中输入的参数是'D:\\test'

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-dee757961155e04db46b967f2d9e8ebf6b9cdf5c.png)

判断文件类型是否为文件夹，如果是文件夹，就递归进入该函数

```C
    if ( (FindFileData.dwFileAttributes & 0x10) != 0 )
      {
        if ( FindFileData.cFileName[0] != 46 )
        {
          wsprintfA(FileName, "%s\\%s", lpString2, FindFileData.cFileName);
          sub_F21000(FileName);
        }
```

如果是文件，就判断后缀是否等于以下几个

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-0adeb8f520c146a3cfd0b5fe815222b273b368a8.png)

如果判断成功，就进入下一个函数，读取文件，并进行加密

```C
HANDLE __thiscall sub_F21230(LPCSTR lpFileName)
{
  _BYTE *v2; // eax
  char v4; // cl
  HANDLE result; // eax
  void *v6; // esi
  void *v7; // edi
  DWORD NumberOfBytesRead; // [esp+8h] [ebp-210h] BYREF
  _BYTE Buffer[260]; // [esp+Ch] [ebp-20Ch] BYREF
  CHAR FileName[260]; // [esp+110h] [ebp-108h] BYREF

memset(Buffer, 0, sizeof(Buffer));
  memset(FileName, 0, sizeof(FileName));
  NumberOfBytesRead = 0;
  strcpy(FileName, lpFileName);
  v2 = &Buffer[259];
  while ( *++v2 )
    ;
  v4 = byte_F2ACEC;
  *(_DWORD *)v2 = dword_F2ACE8;
  v2[4] = v4;
  result = CreateFileA(lpFileName, 0xC0000000, 1u, 0, 3u, 0x80u, 0);
  v6 = result;
  if ( result != (HANDLE)-1 )
  {
    result = CreateFileA(FileName, 0xC0000000, 1u, 0, 2u, 0x80u, 0);
    v7 = result;
    if ( result != (HANDLE)-1 )
    {
      ReadFile(v6, Buffer, 0x104u, &NumberOfBytesRead, 0);
      sub_F21360(Buffer);
      WriteFile(v7, Buffer, 0x20u, &NumberOfBytesRead, 0);
      CloseHandle(v7);
      return (HANDLE)CloseHandle(v6);
    }
  }
  return result;
}
```

加密函数为，进入其中子函数观察

```C
int __thiscall sub_F21360(char *this)
{
  _BYTE v3[508]; // [esp+4h] [ebp-210h] BYREF
  _DWORD v4[4]; // [esp+200h] [ebp-14h] BYREF

v4[0] = 370507323;
  v4[1] = -1496142280;
  v4[2] = -2011826245;
  v4[3] = 1011863321;
  memset(v3, 0, sizeof(v3));
  sub_F21450(v3, 0, 16, v4, 0);
  sub_F21930(v3, this);
  return sub_F21930(v3, this + 16);
}
```

明显是aes加密

![](https://shs3.b.qianxin.com/attack_forum/2024/12/attach-5a4a67ad4e3ff6171a9db12b007137bb96763cab.png)

其中密钥为

```C
  v4[0] = 0x16157E3B;
  v4[1] = 0xA6D2AE38;
  v4[2] = 0x8815F7BB;
  v4[3] = 0x3C4FCF19;
```

### 4.1.5 flag获取

使用python解密

```Python
from Crypto.Cipher import AES
keys=bytes([0x3b,0x7e,0x15,0x16,0x38,0xae,0xd2,0xa6,0xbb,0xf7,0x15,0x88,0x19,0xcf,0x4f,0x3c])
data = open('./flag.txt.cry','rb').read()
aes = AES.new(keys, AES.MODE_ECB)
honduras = aes.decrypt(data)
decrypted_data=[]
for i in honduras:
  decrypted_data.append(i^9)
print(bytes(decrypted_data))

```

得到结果

```C
b'wdflag{70O9TSGICPQSLGDC}\t\t\t\t\t\t\t\t'
```

5.总结
====

该文章对名为 `ReMe.exe` 的勒索加密程序进行了深入分析，包括其基础信息、加密算法（AES-ECB）和执行流程。通过逆向工程，揭示了该程序的自解密、进程注入及加密机制，并最终利用 Python 成功解密出题目要求的 `flag` 值。
